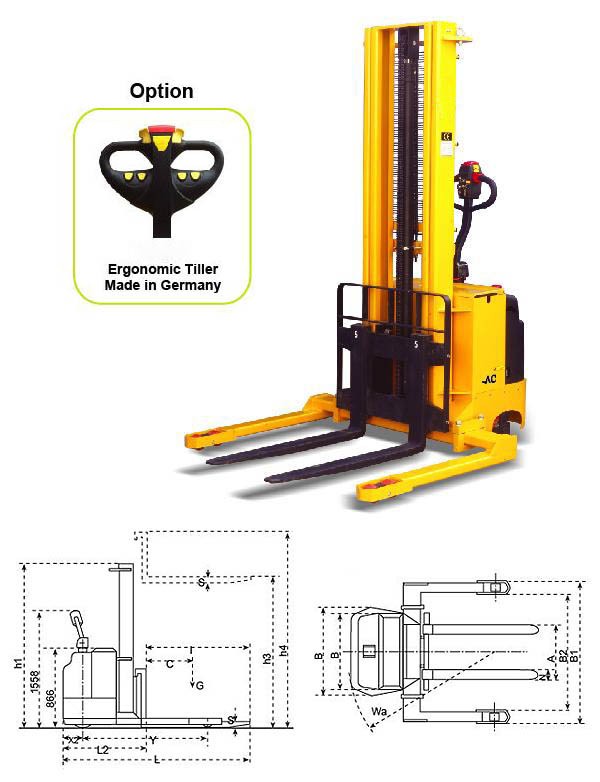

Electric Stacker With Straddle Leg FW/FW@AC series
With DC or AC technology
▲ Heavy duty design with top quality mast construction.
▲ Straddle leg design suitable for two faces or low pallet.
▲ Powerful power pack with European technology.
▲ Drive unit with electromagnetic brake.
▲ Top quality electronic control system from Curtis.
▲ Conforms to EN1757-1,EN 1726.
Specification and technical data:
| Model | FW1531 | |
| FW1531AC | ||
| Capacity | (kg) | 1500 |
| Lifting Height | h3(mm) | 3100 |
| Min.Fork Height | h(mm) | 65 |
| Load Centre | C(mm) | 500 |
| Fork Length | I(mm) | 1000 |
| Motors Traveling | (KW/V) | 1.2/24 |
| Motors Lifting | (KW/V) | 2.2/24 |
| Service Free Battery | 200Ah/24V | |
| Battery Charger | 20A/24V | |
| Traction Battery (option) | 240Ah/24V | |
| Front Roller | (mm) | Polyurethane, Tandem Ø78x70mm |
| Rear Roller | (mm) | Polyurethane, Ø150x75mm |
| Drive Wheel | (mm) | Polyurethane, Ø250x80mm |
| Net Weight | (kg) | 905 |
| Dimension | S(mm) | 38 |
| X2(mm) | 200 | |
| Y(mm) | 1283 | |
| L2(mm) | 792 | |
| L(mm) | 1792 | |
| B1(mm) | 1197-1502 | |
| B2(mm) | 965-1270 | |
| A(mm) | 230-790 | |
| N(mm) | 100 | |
| h1(mm) | 2201 | |
| h3(mm) | 3100 | |
| h4(mm) | 3960 | |
| B(mm) | 1080 | |
| Wa(mm) | 1548 |
