Full Electric Stacker FN@AC series
AC Technology
▲ Tiller arm is mounted on one side for optimal control and visibility.
▲ High-comfort tiller grip reduces fatigue, improving productivity.
▲ Heavy-duty design with top quality mast construction.
▲ Powerful power pack with European technology.
▲ Drive unit with electromagnetic brake, maintenance free AC technology.
▲ Top quality electronic control system from Curtis.
▲ Multi-function handle includes crawl button, butterfly travel speed controls and lift/lower control offer variable speed adjustment.
▲ Conforms to EN1757-1:2001, EN 1726.
Specification and technical data:
Model | FN1233AC | |
Capacity | (kg) | 1200 |
Lifting Height | (mm) | 3300 |
Min. Fork Height | (mm) | 90 |
Load Centre | (mm) | 600 |
Fork Length | (mm) | 1150 |
Fork Overall Width | (mm) | 540 |
Driver Wheel | Ø250mm, 1200W/24V (AC) | |
Power Pack | (KW/V) | 1.2/24 |
Traction Battery | (Ah/V) | 165/24 |
Net Weight | (kg) | 691 |

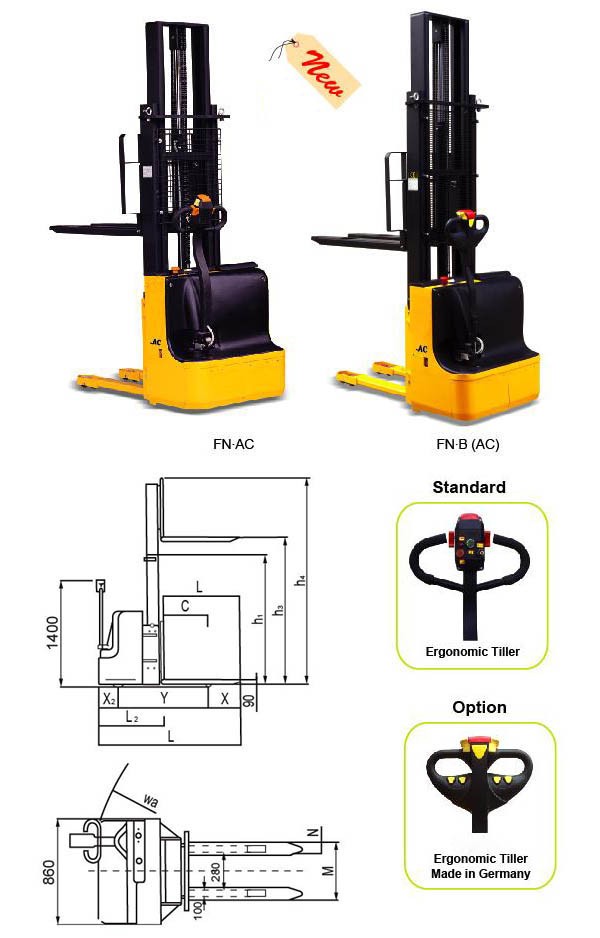

Dimension | X2(mm) | 190 |
L2(mm) | 774 | |
h1(mm) | 2025 | |
h4(mm) | 3946 | |
X(mm) | 455 | |
Y(mm) | 1279 | |
L(mm) | 1924 | |
N(mm) | 160 | |
h3(mm) | 3300 | |
Wa(mm) | 1540 |
