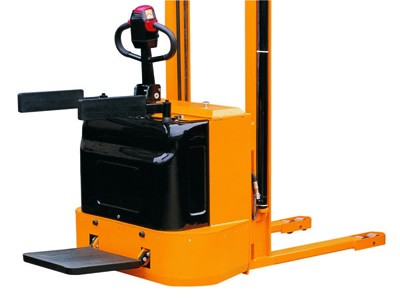

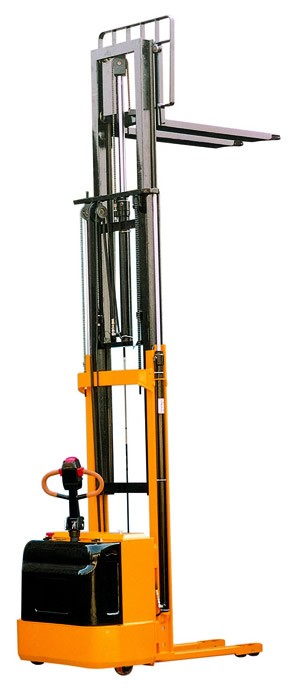

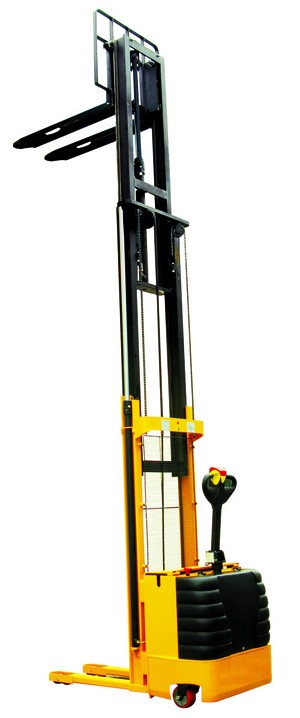

| Full Electric Stacker FK/BK series |
| ▲ Heavy duty design with top quality mast construction. |
| ▲ Powerful drive wheel and power unit made in Europe. |
| ▲ Top quality electronic control system from Curtis. |
| ▲ Conforms to EN1757-1:2001, EN 1726. |
Specification and technical data:
| Model | BKW1555 | |
| Type | Platform | |
| Capacity | (kg) | 1500 |
| Load Center (C) | (mm) | 600 |
| Max.Fork Height (h3) | (mm) | 5500 |
| Lowered Fork hitht (h) | (mm) | 90 |
| Full Free Lifting leight (h4) | (mm) | 1717 |
| Fork length (I) | (mm) | 1000 |
| Fork Overall Width (M) | (mm) | 200-950 |
| Fork Individual Width (N) | (mm) | 160 |
| Traction Battery | (Ah/V) | 240/24 |
| Battery Charger | (A/V) | 30/24 |
| Weight of battery | (kg) | 230 |
| Overall Dimension | (mm) | 2507x940x2175 |
| Net Weight (without battery) | (kg) | 1370 |
| Note: Specification and materials are subject to change without notice. | ||
