Full Electric Stacker FE@AC series
AC Technology
Capacity 1200kg, 1500kg
Conforms to EN1757-1:2001, EN1726
▲ Heavy duty range for tough application.
▲ Top quality electronic control system from Curtis.
▲ Powerful power pack and drive wheel made in Europe.
▲ Powerful maintenance free AC drive motor.
▲ Drive unit with electromagnetic brake.
Specification and technical data:
| Model | FE1531AC | |
| Capacity | (kg) | 1500 |
| Lifting Height | h3(mm) | 3100 |
| Min. Fork Height | h(mm) | 90 |
| Load Centre | C(mm) | 600 |
| Fork Length | I(mm) | 1150 |
| Fork Width | M(mm) | 540 |
| Travelling Speed | without Load 5.5 km/h, With Full Load 4.8 Km/h | |
| Lifting Speed | without Load 144 mm/s, With Full Load 95 mm/s | |
| Lowering Speed | without Load 150 mm/h, With Full Load 65 mm/s | |
| Motors Traveling | (KW/V) | 1.2/24 (AC) |
| Motors Lifting | (KW/V) | 2.2/24 |
| Battery(service free) | (Ah/V) | 200/24 |
| Battery Charger | (A/V) | 20/24 |
| Front Roller | (mm) | Ø78x70 |
| Rear Roller | (mm) | Ø150x75 |
| Drive Wheel | (mm) | 250x80 |
| Net Weight | (kg) | 705 |

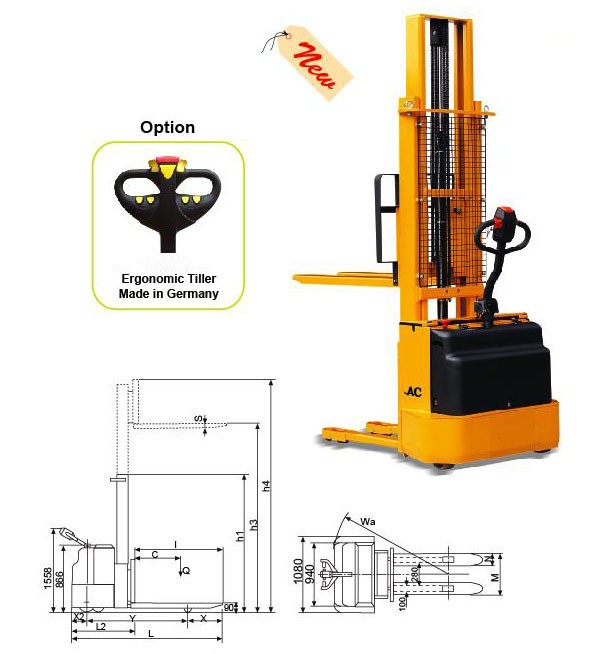

| Dimension | X(mm) | 460 |
| S(mm) | 56 | |
| X2(mm) | 200 | |
| Y(mm) | 1270 | |
| L2(mm) | 780 | |
| L(mm) | 1930 | |
| N(mm) | 160 | |
| h1(mm) | 2125 | |
| h4(mm) | 3744 | |
| B(mm) | 1080 | |
| Wa(mm) | 1540 | |
| Option: Traction Battery (240Ah/24V). | ||
