Full Electric Stacker FE series
▲ Heavy duty range for tough application.
▲ Top quality electronic control system from Curtis.
▲ Powerful power pack and drive wheel made in Europe.
▲ Drive unit with electromagnetic brake.
▲ Conforms to EN1757-1:2001, EN1726.
Specification and technical data:
Model
FE1216
Capacity
(kg)
1200
Lifting Height
h3 (mm)
1600
Min. Fork Height
h (mm)
90
Load Centre
C (mm)
600
Fork Length
I (mm)
1150
Fork Width
M (mm)
540
Travelling Speed
without Load 5.5 km/h, With Full Load 4.8 Km/h
Lifting Speed
without Load 144 mm/s, With Full Load 95 mm/s
Lowering Speed
without Load 150 mm/h, With Full Load 65 mm/s
Motors Traveling
(KW/V)
1.2/24
Motors Lifting
(KW/V)
2.2/24
Battery (service free)
(Ah/V)
200/24
Battery Charger
(A/V)
20/24
Front Roller
(mm)
Ø78x70
Rear Roller
(mm)
Ø150x75
Drive Wheel
(mm)
250x80
Net Weight
(kg)
614

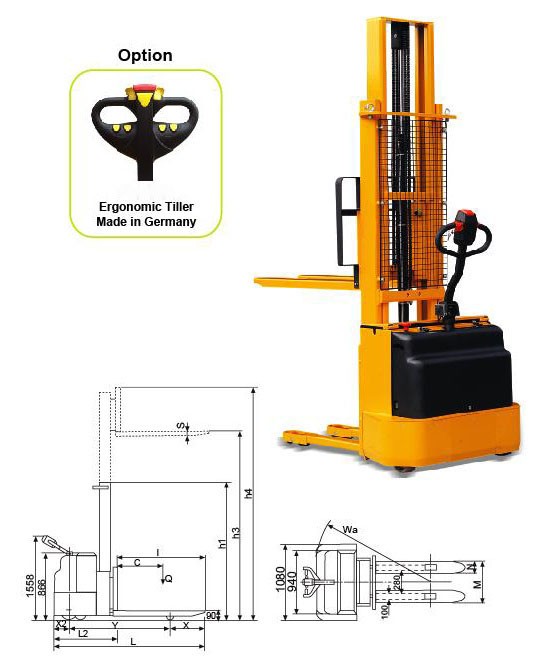

Dimension
X (mm)
460
S (mm)
56
X2 (mm)
200
Y (mm)
1270
L2 (mm)
780
L (mm)
1930
N (mm)
160
h1 (mm)
2090
h4 (mm)
2244
B (mm)
940
