Double-Pallet Stacker FD series
▲ Capacity 1200kg, 1500kg
▲ New tiller made by REMA, German
▲ Efficiency carry double pallets simultaneously.
▲ High-comfort tiller grip reduces fatigue, improving productivity.
▲ Heavy-duty design with top quality mast construction.
▲ Powerful drive unit and power pack are made in Europe.
▲ Top quality electronic control system made in Europe.
▲ Conforms to EN 1757-1:2001, EN 1726

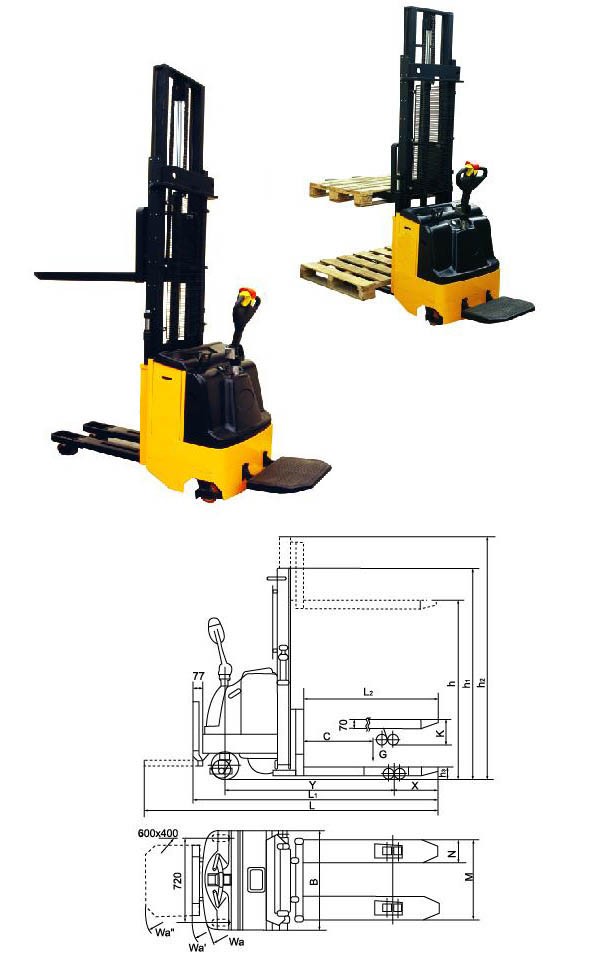

Specification and technical data:
| Model | FD1524 | |
| Capacity | (kg) | 1500 |
| Lifting Height | (mm) | 2450 |
| Load Centre | (mm) | 600 |
| Fork Length | (mm) | 1150 |
| Fork Width | (mm) | 680 |
| Motors Travelling | (W/V) | 2000/24 |
| Motors Lifting | (W/V) | 2000/24 |
| Driver Wheel | (mm) | Ø230×75 |
| Front Roller | (mm) | Ø80×70 |
| Rear Roller | (mm) | Ø140×60 |
| Battery | (Ah/V) | 240/24 |
| Net Weight | (kg) | 850 |
| Dimension | X (mm) | 380 |
| Y (mm) | 1431 | |
| L1 (mm) | 2080 | |
| L (mm) | 2493 | |
| K (mm) | 210 | |
| h1 (mm) | 1840 | |
| h2 (mm) | 2984 | |
| h3 (mm) | 90 | |
| N (mm) | 190 | |
| B (mm) | 844 | |
| Wa | 1625 | |
| Wa' | 1730 | |
| Wa" | 2125 |
