Universal Joint Drive Balancing Machine(PHW-5000)

Original Image

Products Visitors:207

Product Name:Universal Joint Drive Balancing Machine(PHW-5000)

Products description: Universal Joint Drive Balancing Machine(PHW-5000)

Universal Joint Drive Balancing Machine ( balance machine):PHW-5000 Universal Joint Balancing Machine

Mainly used in checking the balance of rotatable bodies such as motors, spindles of machine tools,fans, clinopodiums, pump impeller.drying cylinder.ceramic machinery,rollers,rubber sticks,etc.. Driven by universal joints, and it can offer us a variety of rotation speed,with features of high precision,easy to be operated and high efficiency,etc..

Specifications	Parameters
Mass Scope of Workpiece (kg)	5000
Max Diameter of Workpiece (mm)	2400
Distance Between Two Support Bearings (mm)	Min:320
Journal Diameter Scope of Workpiece (mm)	40~380
Max Distance between Driving Flange and Right Bearing Support (mm)	2500
Rotation Speed of the Main Axis (r/min)	230/390/686/1090/1680+ Stepless Speed Regulating
Motor Power (kw)	15(variable-frequency)
Torque of Universal Joint Shaft (N.m)	1250
Min Achievable Residual Unbalance Amount (emar)	1g.mm/kg

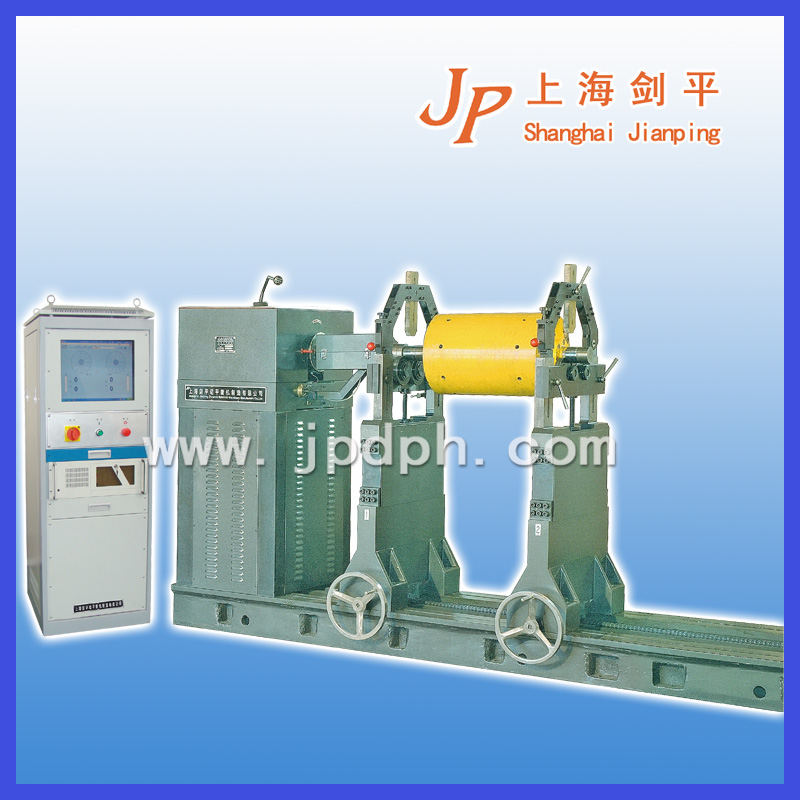

Product Images: Universal Joint Drive Balancing Machine(PHW-5000)
