Straflo Fan Blade Balancing Machine(PHQ-T16)

Original Image

Products Visitors:412

Product Name:Straflo Fan Blade Balancing Machine(PHQ-T16)

Products description: Straflo Fan Blade Balancing Machine(PHQ-T16)

Straflo Fan Blade Balancing Machine

PHQ-T16 Balancing Machine for Straflo Fans

This balancing machine is mainly applied to balance products like straflo bellows of air- conditioner, with advantages of high accuracy, high measuring speed and low fault rate etc.

Specifications	Parameters
Max Mass Scope of Workpiece (kg)	16
Max Diameter of Workpiece (mm)	150
The distance between two bearing pedestals(mm) Length of Workpiece (mm)	Min60 900
Rotation Speed of the Main Axis (r/min)	740/1100
Journal Diameter Scope of Support Bearings (mm)	5-12
Motor Power (kw)	0.25
Min Achievable Residue Unbalance Amount (emar)	5g.mm/kg

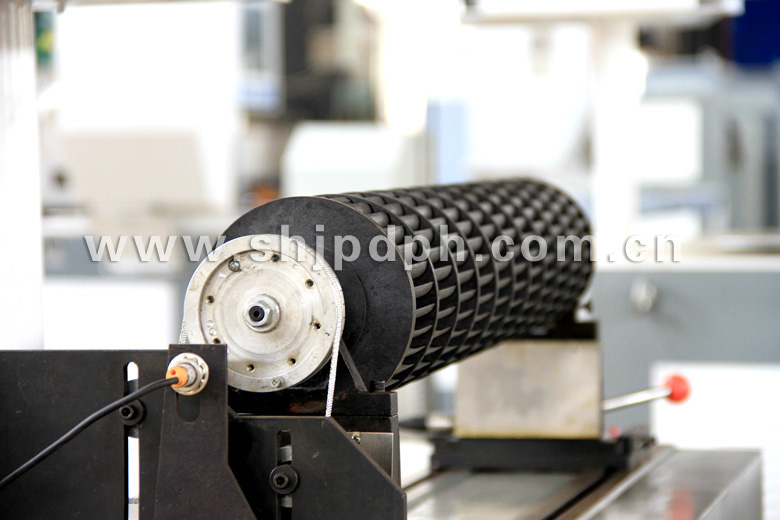

Product Images: Straflo Fan Blade Balancing Machine(PHQ-T16)
