Universal Joint Drive Balancing Machine(PHW-20000)

Original Image

Products Visitors:221

Product Name:Universal Joint Drive Balancing Machine(PHW-20000)

Products description: Universal Joint Drive Balancing Machine(PHW-20000)

Universal Joint Drive Balancing Machine:PHW-20000 Universal Joint Balancing Machine.

Mainly used in checking the balance of rotatable bodies such as motors, spindles of machine tools,fans, clinopodiums,pump impeller.drying cylinder. ceramic machinery.rollers.rubber sticks,etc.. Driven by universal joints, and it can offer us a variety of rotation speed,with features of high precision,easy to be operated and high efficiency,etc.

Specifications	Parameters
Mass Scope of Workpiece (kg)	20000
Max Diameter of Workpiece (mm)	2800
Distance Between Two Support Bearings (mm)	Min:450
Journal Diameter Scope of Workpiece (mm)	60~400
Max Distance between Driving Flange and Right Bearing Support (mm)	3600
Rotation Speed of the Main Axis (r/min)	192/330/551/900/1350/ (Stepless Speed Regulating)
Motor Power (kw)	55 variable-frequency
Torque of Universal Joint Shaft (N.m)	5000
Min Achievable Residual Unbalance Amount (emar)	1g.mm/kg

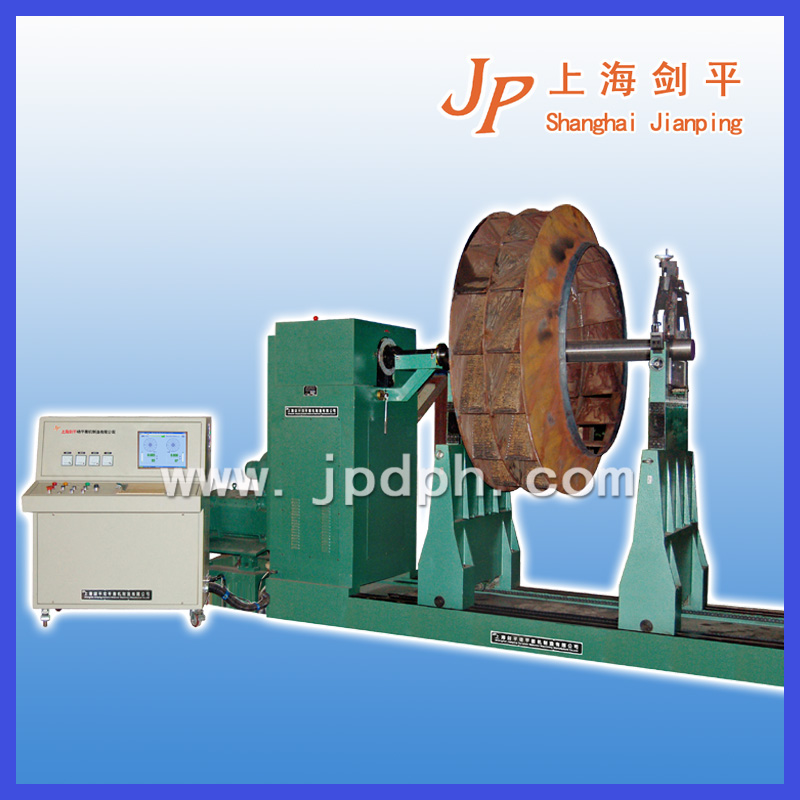

Product Images: Universal Joint Drive Balancing Machine(PHW-20000)
