Universal Joint Drive Balancing Machine (PHW-1000)

Original Image

Products Visitors:256

Product Name:Universal Joint Drive Balancing Machine (PHW-1000)

Products description: Universal Joint Drive Balancing Machine (PHW-1000)

Universal Joint Drive Balancing Machine

This balancing machine is mainly used in checking the balance of rotatable bodies such as motors, spindles of machine tools,fans, clinopodiums, pump impeller.drying cylinder.ceramic machinery,rollers,rubber sticks,etc.. Driven by universal joints, and it can offer us a variety of rotation speed,with features of high precision,easy to be operated and high efficiency,etc.

Specifications	Parameters
Mass Scope of Workpiece (kg)	1000
Max Diameter of Workpiece (mm)	1500
Distance Between Two Support Bearings (mm)	Min:100
Journal Diameter Scope of Workpiece (mm)	20~180
Max Distance between Driving Flange and Right Bearing Support (mm)	1500
Rotation Speed of the Main Axis (r/min)	315/570/630/1140
Motor Power (kw)	3/4.5
Torque of Universal Joint Shaft (N.m)	300
Min Achievable Residual Unbalance Amount (emar)	1g.mm/kg

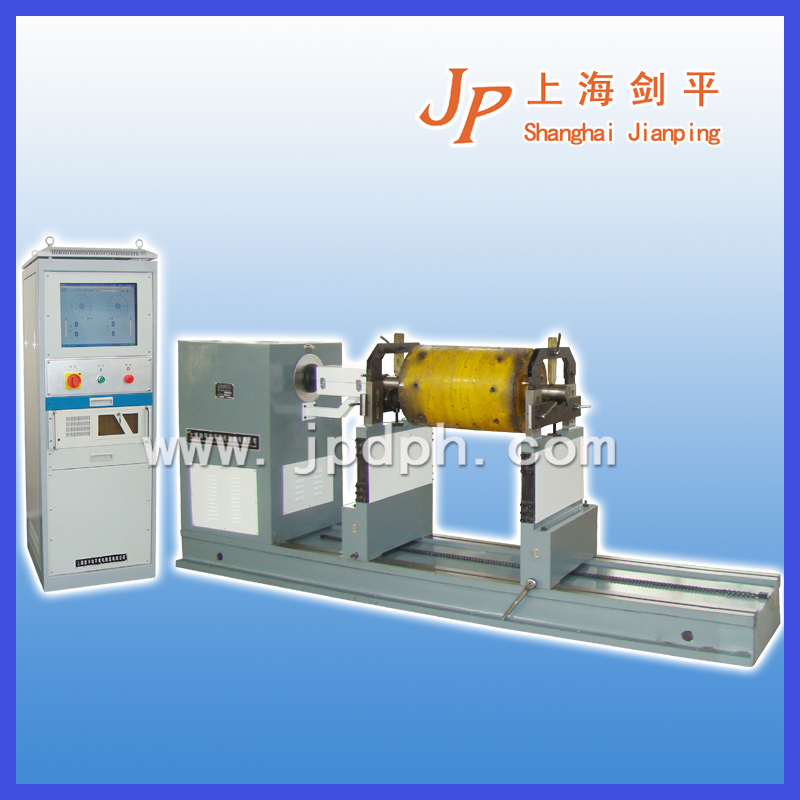

Product Images: Universal Joint Drive Balancing Machine (PHW-1000)
