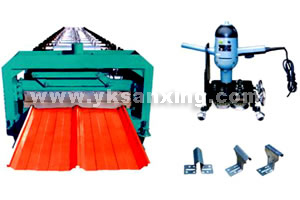

Description of Roof Panel Roll Forming Machine:
Concealed roof panel roll forming machine is an updated generation of traditional roll forming machine, which haves successfully solved the problem of leakage. The line mainly consists of uncoiler and its base, coil sheet guiding equipment, roll forming system, post-cutting equipment, and computer control cabinet. This metal forming equipment is suitable for roll forming colored galvanized steel sheets with the size of 1000mm × (0.4~0.8)mm × Lmm.
Product Features of Roof Panel Roll Forming Machine:
1. The corrugated panels produced by this production line are strong and durable with high wave crest.
2. The joining type of these panels is self-locked, which makes it easy to install and safe with excellent waterproof property.
Product Application of Roof Panel Roll Forming Machine:
The roof panels are widely used as the roof of factory, warehouse, garage, and gymnasium etc.
Main Technical Specification of Roof Panel Roll Forming Machine:
1. Size: 8000mm × 1500mm × 1600mm
2. Total Weight: about 5500KG
3. Controlling System: PLC
4. Main Motor Power: 5.5KW
5. Working Speed: 10000~12000mm/min
