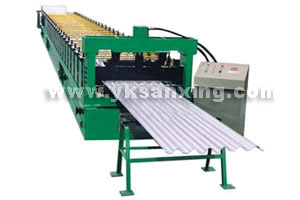

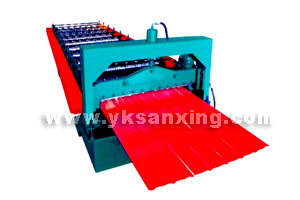

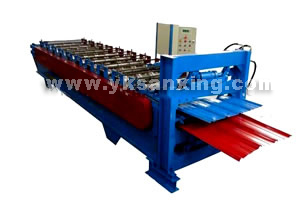

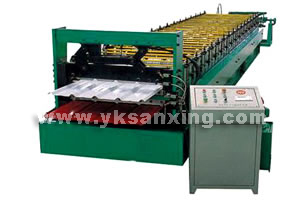

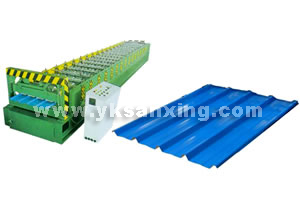

Description of Color Coated Steel Plate Roll Forming Machine
Through rolling and cold bending, this roll forming machine can press the colored steel sheet with thickness of 0.3~1.0mm into all kinds of wave pattern sheet.
Features of Color Coated Steel Plate Roll Forming Machine:
1. In order to meet the needs to use all kinds of colored sheets and materials (high and low strength sheet), Sanxing improves the design of the forming press and adds a herringbone roller between wave crests of profile, thus making pressed sheet flat, beautiful and increasing its strength.
2. Being forged from the high quality steel, all the rollers are processed intensely through high frequency hardening, quenching and tempering. Furthermore, with hard chromium plating surfaces, they are smooth and wear proof.
3. The computer controls the length and the measurement, which is reliable and laborsaving.
Product Application of Color Coated Steel Plate Roll Forming Machine:

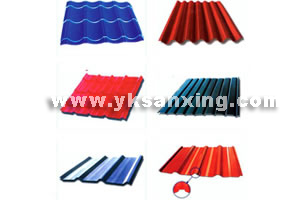

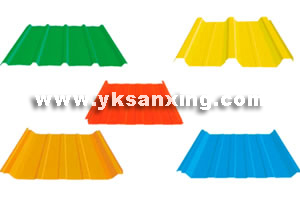

With the characteristics of light weight, high strength, rich colors, and earthquake resistance and fire resistance etc., the colored steel sheets made by this metal forming equipment are widely used, such as civilian building, warehouse, roof board, interior wall board, external wall board, decoration, etc.
Technical Specification of Color Coated Steel Plate Roll Forming Machine:

Types	Width of the coil	Width of the formed sheet	The depth of the groove	Thickness of the coil	Usage
SX-840	1000mm	840mm	25mm	0.3-0.6mm	Widely used as roof Could used as wall
SX-900	1000mm	900mm	15mm	0.3-0.6mm	Widely used as wall
SX-930	1000mm	930mm	14mm	0.3-0.6mm	Widely used as wall
SX-1000	1250mm	1000mm	35mm	0.5-0.8mm	Widely used as roof, the final price is according to your profile
