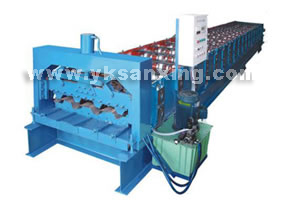

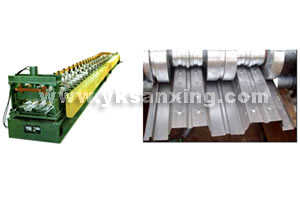

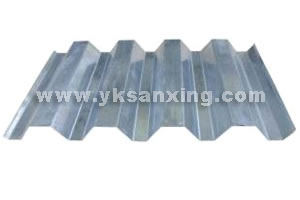

Description of Deck Floor Roll Forming Machine:
This metal forming equipment is made up of hydraulic decoiler, main forming machine, hydraulic cutting, product stand, hydraulic system and electric system.
The Chart of Process Flow
decoiling→active feeding→roll forming→measuring length→cutting to length→putting product to stand
Technical Parameters of Deck Floor Roll Forming Machine:
1) Manual Inner Tight Decoiler
a. coil inner diameter: 450mm-700mm
b. max width of coiling: 1200mm
c. max weight of loading: 6000kg
d. hydraulic station power: 3kw
e. motor power: 3kw
f. oil cylinder inner diameter: 120mm
g. working pressure: 10Mpa

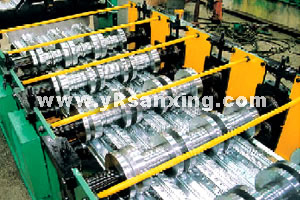

2) Main Forming Machine
a. number of forming steps: 22
b. material of shaft: 45# steel adjustable treatment.
Outer diameter: 80mm
c. material of roller15 GCR bearing steel treatment HRC58-60
d. main motor power5.5kw
e. forming speed: 8-10m/min
f. stand350# steel welding
g. the plating chromium of roller surface 0.05mm
3) Hydraulic Cutter
a. material of blade: Cr12 with quenched treatment 60-62
b. cutting system: adopt advanced hydraulic drive, automatic cut after forming, no distortion, no waste, high safe factor(main motor stops and then cuts)
4. Electrical System
The main computer (PLC): Tai Da DVP14ES
5. Hydraulic System
1). Adopting advanced hydraulic system of TaiWan
2). Power:4KW
6. The whole machine consists of: automatic inner tight decoiler: 1set; main forming machine: 1 set; hydraulic system: 1 set; electrical system: 1 set, normal product stand: 3 set.
