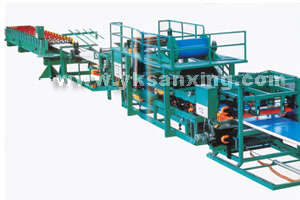

Description of EPS - Rock Wool PU Sandwich Panel Machine:
This PU sandwich panel line consists of a roll forming machine and a sandwich panel laminating system. It can produce corrugated sandwich panels directly. Moreover, both the roll forming machine and the laminating system can work independently. The roll forming machine of the production line consists of feeding system, roll forming system and cutting system, while the laminating system is made up of such equipment as decoiler, feeding, squeezing, heating, laminating, edge rolling edge turn-over, groove-making, edge pruning, pneumatic device, automatic cutting and PLC. Annual production capacity of this metal forming equipment is about 500,000 square meters.
Features of EPS - Rock Wool PU Sandwich Panel Machine:
1. State-of-the-art appearance, low noise, high efficiency.
2. Multiple functions: Besides corrugated sandwich panels, this PU sandwich panel line can be used to produce simple corrugated sheets.
3. Employing advanced PLC, it sets the panel length and cuts the panel automatically.
4. Adopting advanced working crafts, the whole machine integrates mechanical and electrical equipment into an organic whole.

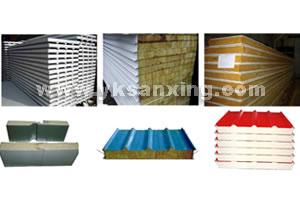

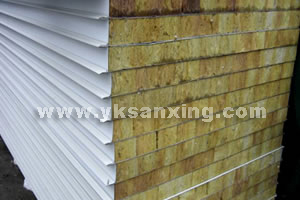

Product Application of EPS - Rock Wool PU Sandwich Panel Machine:
The products of this metal forming equipment are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, civil construction, stadium, cold storage, etc.
Main Technical Specification of EPS - Rock Wool PU Sandwich Panel Machine:
1. Size: 38000mm × 3600mm × 3300mm
2. Total weight: about 24000KG
3. Controlling system: PLC
4. Total power(including heating):about 40KW
5. Working speed: 1000~3000mm/min
6. Density of EPS:>18kg/mm
7. Suitable material for production: 1000~1200mm × (0.5~0.6mm)
