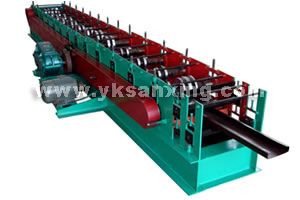

Features of C Purlin Roll Forming Machine:
1. Unlike other C shape roll forming machines, it adopts pre-cutting, which can be used for a longer time than after-cutting, thus reducing your cost.
2. This metal forming equipment can cut about 500,000 times, whereas the ordinary machine can only cut 20,000 times at most.
Application of C Purlin Roll Forming Machine:

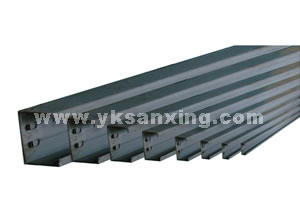

The C-shaped purlines formed by this machine exhibit excellent anti-bending property and easy installation. They are widely applied as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre and garden etc.
Technical Specification of C Purlin Roll Forming Machine:

C Purlin Section Size
Model	Section size(mm)				Hole Distance (mm)	Remarks
	h	b	c	t
c80	80	40	15	2.0-3.0	none	Different models are available according to customer's requirements (middle holes are also available)
c100	100	50	20	2.0-3.0	40
c120	120	50	20	2.0-3.0	adjustable
c140	140	50	20	2.0-3.0	adjustable
c160	160	50	20	2.0-3.0	adjustable
c180	180	60	20	2.0-3.0	adjustable
c200	200	60	20	2.0-3.0	adjustable
c220	220	60	20	2.0-3.0	adjustable
c250	250	70	20	2.0-3.0	adjustable

NO.	NAME	POWER	REV	PURPOSE
1	Electric molding machine	15Kw	1440r/min	molding
2	Molding retarder		39r/min	Molding
3	The most figure size	length	size	Height
		8500mm	2000mm	1700mm
4	The most ability of produce	12-21m/min
5	The weight of the machine	About 8T
