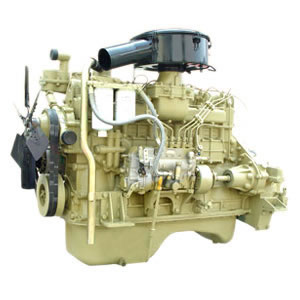

Marine Diesel Engine 6110/125AC
Main Features of Marine Diesel Engine 6110/125AC:
1. Using valve actuating mechanism and fuel system with excellent performance
2. Adopt water-resisting exhaust pipe to reduce temperature of engine compartment
3. Using highly heat-resistant vermicular cast iron cylinder cap matched with advanced inlet duct and air channel
4. Adopt high grade nodular cast iron crankshaft, surface hardening treatment, anti-wear and anti-fatigue, shaft broken will not happen
5. Checked and accepted by Shanghai Branch of China Ship Grade Agency
Application of Marine Diesel Engine:
Our Marine engine is suitable for: 8m-17m port supervision boats, patrol boats, public affair boats, tourism boats
Technical Parameters of Marine Diesel Engine 6110/125AC:

Model	6110/125AC
Type	In line, water-cooling, four-stroke
Bore×Stroke(mm)	110×125
Cylinder number	6
Total displacement(L)	7.127
Rated power/speed (kW/r/min)	100/2500	77/2200
Overload power / overload speed (kW/r/min)	110/2575	85/2260
Min. fuel consumption at full load (g/kW.h)	≤252
Minimum speed on work (r/min)	1000
Smoke (FSN)	≤4.0
Net weight (kg)	≤560
