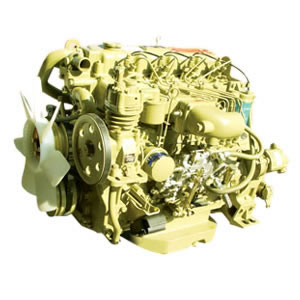

Agricultural Diesel Engine
Main Features:
1. Transplant technology of car diesel engine to agricultural diesel engine, advantages of good performance and low fuel consumption
2. Reduce rotational speed of car diesel engine to match farm machinery
3. Steering booster pump and hydraulic pump can be equipped
Application:
Our agricultural diesel engine can be used in combine harvesters, corn harvesters, cotton picker, tractor, and other farm machines
Technical Parameters:

Model	4110/125T	6110/125T		6110/125ZT		6113T	4113T	4113ZT
Type	In line naturally-aspirated			In line.turbo charge		In line naturally-aspirated		In line, turbo charge
Bore×Stroke(mm)	110×125					113×125
Cylinder number	4		6			6	4
Total displacement(L)	4.752		7.127			7.521	5.014
Rated power/speed (kW/r/min)	59/2200		103/2400		114/2000	103/2200	64/2400	77/2400
Max torque/speed (N.m/r/min)	295/1600-1800		460/1300-1500		640/1400-1600	500/1300-1500	330/1700-1900	350/1400-1600
Min. fuel consumption at full load (g/kW.h)	≤238				≤235	≤238	≤238	≤235
Min. idling speed (r/min)	700±30
Smoke (FSN)	4.0
Net weight (kg)	480		560		600	560	480
