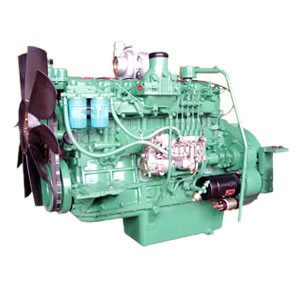

Diesel Engine for Generator Set
Main Features of Diesel Engine for Generator Set:
1. Absorbing such advanced technologies as Austrian AVL, German FEV and Sweden VOLVO.
2. Technology and quality control of diesel engine for automobiles.
3. Adopting low eddy current inlet duct and low resistance air exhaust channel.
4. Adopting highly heat-resistant and quake-proof vermicular cast iron cylinder cap
5. High reliability, low fuel consumption, easy maintenance, and low cost to maintain.
6. Maintaining a large quantity of adequate accessories.
Application:
35-170KW Generator set
Technical Parameters of Diesel Engine for Generator Set:

Model	6110/125ZLD1		6110/125ZD1	4113D1	6113D1	6DL2-18	6DL2-30
Type	In line.water-cooling, turbocharged inter-cooling		In line, water-cooling, turbo charge	In line.water-cooling, SDi		In line. turbocharged inter-cooling
Bore×Stroke(mm)	110×125			113×125		112×145
Cylinder number	6			4	6	6
Ignition sequence	1-5-3-6-2-4			1-3-4-2	1-5-3-6-2-4	1-5-3-6-2-4
12hours rated power/speed(kW/r/min)	120/1500	96/1500		48/1500	73/1500	132/1500	220/1500
Min. fuel consumption at full load (g/kW.h)	≤215	≤220		≤230	≤230	199
Stable rate	≤5%
Instantaneous transfer rate	≤10%
Stability time (s)	≤7
