Replace 3M EPDM Cold Shrink Tubing

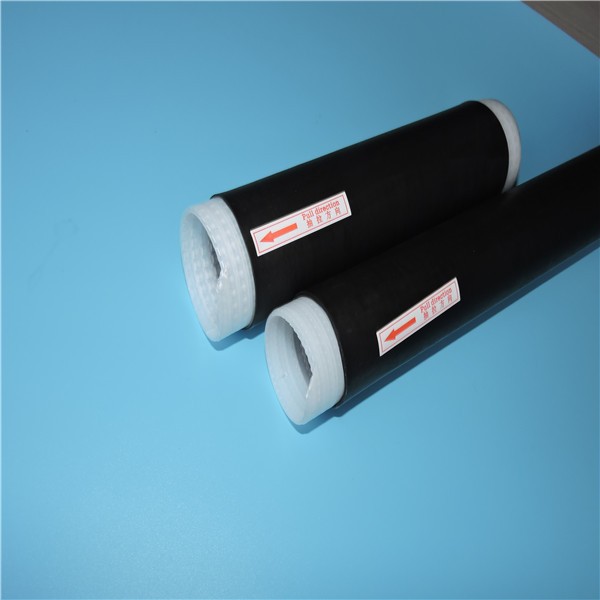

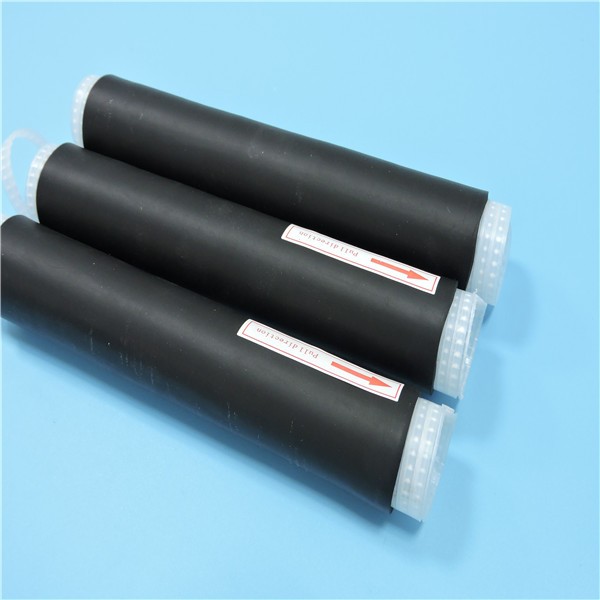

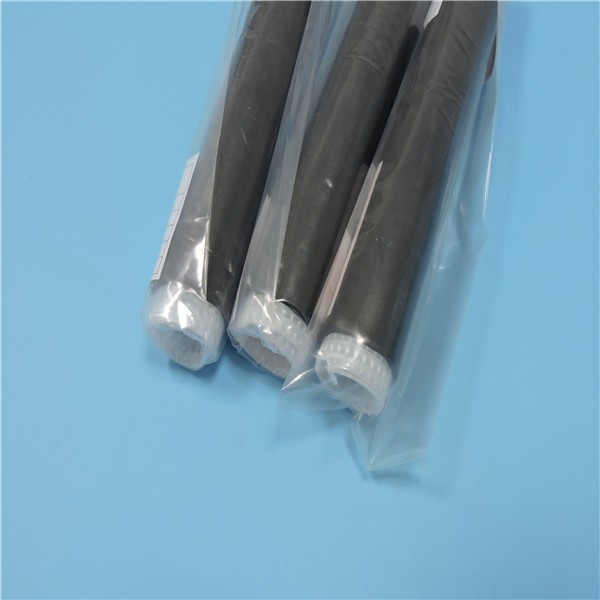

RUBLS-EPDM Replace 3M EPDM Cold Shrink Tubing a series
of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are
supplied for field installation in this pre-stretched condition. The core is removed after the tube has been positioned for
installation over an in line connection, terminal lug, etc., allowing the tube to shrink and form a waterproof seal. The insulating
tube is made of EPDM rubber, which contains no chlorides or sulphurs. Various diameter sizes will cover a range of 1000 volt cables,
copper and aluminum conductors.
Unique Advantages
-
Excellent weather resistance, ultraviolet aging
resistance and higher
-
embrittlement resistance than heat shrink tubing
-
More resistant to slab and prick, abrasion, acid and
alkali than silicone cold shrink tubing
-
Simultaneously expands and shrinks with workpieces
without
-
clearances, seals tight in harsh
environment
-
Stably sealing the workpieces in windy environment
-
Well suited for cable less than 1KV
-
Seals tight, retains its resiliency and pressure even
after prolonged years of ageing and exposure.
-
Simple , safe installation, requires no tools or special
training.Notorches or heatwork required.
-
Diameter shrinkage：≥50% Sealing class IP67
Applications
-
Primary electrical insulation for all solid dielectric
(rubber and plastic) insulated wire and cable splices rated to 1000volts
-
Meets
ANSI C119.1, directly buriable or submersible
-
For indoor, outdoor, or overhead use
-
Physical protection and moisture
sealing for high-voltage, air-insulated
-
connectors and lugs such as spacer
cable and lug connections to busbar
-
Insulation of secondary splices
copper or aluminum conductors
-
Relocation of service
-
Dig-in repairs, sheath repairs
-
Insulation of inline conductor
transition connectors
-
Sealing of coax cables with Type N or 7/16
DIN connectors on wireless communication towers
Technical Data
|
Properties
|
Typical Data
|
Test method
|
|
HS
|
49 A
|
ASTM D 2240-75
|
|
Tensile Strength
|
9.8 MPa
|
ASTM D412-75
|
|
Elongation at break
|
720%
|
ASTM D412-75
|
|
Tear Strength
|
27 N/ mm
|
ASTM D624C-73
|
|
Dielectric Strength
|
14.3kV/mm
|
ASTM 149-75
|
|
Dielectric Constants
|
5.0(Initial data)/5.6(90degree in the water
for 7 days))
|
/
|
|
Anti-enzyme (bacteria)
|
The 28 day exposure without growth
|
ASTM G-21
|
|
UV Resistant
|
UV irradiation for
2000 hours without aging
|
ASTM G-53
|
Dimensions
|
Size
(mm)
|
Inner Diameter D(mm)
|
Min Cable Outer diameter (mm)
|
Max Cable Outer Diameter (mm)
|
Recovered Length L(mm)
|
|
VE18-3
|
Ф18
|
7.8
|
14.3
|
80
|
|
VE18-6
|
Ф18
|
7.8
|
14.3
|
152
|
|
VE18-7
|
Ф18
|
7.8
|
14.3
|
178
|
|
VE24-8
|
Ф20
|
2.54
|
20.9
|
203
|
|
VE25-7
|
Ф25
|
10.1
|
20.9
|
178
|
|
VE25-8
|
Ф25
|
10.1
|
20.9
|
203
|
|
VE25-11
|
Ф25
|
10.1
|
20.9
|
279
|
|
VE25-12
|
Ф25
|
10.1
|
20.9
|
305
|
|
VE28-5
|
Ф28
|
8.0
|
22.5
|
125
|
|
VE35-6
|
Ф35
|
13.9
|
30.1
|
152
|
|
VE35-8
|
Ф35
|
13.9
|
30.1
|
203
|
|
VE35-9
|
Ф35
|
13.9
|
30.1
|
229
|
|
VE35-11
|
Ф35
|
13.9
|
30.1
|
279
|
|
VE42-6
|
Ф42
|
16.8
|
35.1
|
152
|
|
VE42-8
|
Ф42
|
16.8
|
35.1
|
203
|
|
VE42-10
|
Ф42
|
16.8
|
35.1
|
254
|
|
VE42-12
|
Ф42
|
16.8
|
35.1
|
305
|
|
VE42-16
|
Ф42
|
16.8
|
35.1
|
406
|
|
VE42-18
|
Ф42
|
16.8
|
35.1
|
457
|
|
VE50-8
|
Ф50
|
13.5
|
43.7
|
203
|
|
VE58-6
|
Ф58
|
24.0
|
49.3
|
152
|
|
VE58-7
|
Ф58
|
24.0
|
49.3
|
178
|
|
VE58-8
|
Ф58
|
24.0
|
49.3
|
203
|
|
VE58-10
|
Ф58
|
24.0
|
49.3
|
254
|
|
VE58-12
|
Ф58
|
24.0
|
49.3
|
305
|
|
VE58-18
|
Ф58
|
24.0
|
49.3
|
457
|
|
VE58-24
|
Ф58
|
24.0
|
49.3
|
610
|
|
VE58HP-10
|
Ф58
|
20.5
|
51.0
|
254
|
|
VE65-10
|
Ф65
|
23.7
|
57.5
|
254
|
|
VE77-6
|
Ф77
|
32.2
|
67.8
|
152
|
|
VE77-7
|
Ф77
|
32.2
|
67.8
|
178
|
|
VE77-9
|
Ф77
|
32.2
|
67.8
|
229
|
|
VE77-12
|
Ф77
|
32.2
|
67.8
|
305
|
|
VE77-13
|
Ф77
|
32.2
|
67.8
|
330
|
|
VE77-14
|
Ф77
|
32.2
|
67.8
|
355
|
|
VE77-18
|
Ф77
|
32.2
|
67.8
|
457
|
|
VE77-22
|
Ф77
|
32.2
|
67.8
|
550
|
|
VE77HP-13
|
Ф77
|
27.4
|
70.0
|
330
|
|
VE105-8
|
Ф105
|
42.6
|
93.7
|
203
|
|
VE105-9
|
Ф105
|
42.6
|
93.7
|
229
|
|
VE105-18
|
Ф105
|
42.6
|
93.7
|
457
|
|
VE105-20
|
Ф105
|
42.6
|
93.7
|
508
|
|
VE120-24
|
Ф120
|
33.0
|
114.3
|
610
|
|
VE160-24
|
Ф160
|
60.0
|
154.0
|
620
|
Remark :*Product
contains range –extending adapters (Without adapters, 8424-8/8425-8 ranges are
identical. )
|
