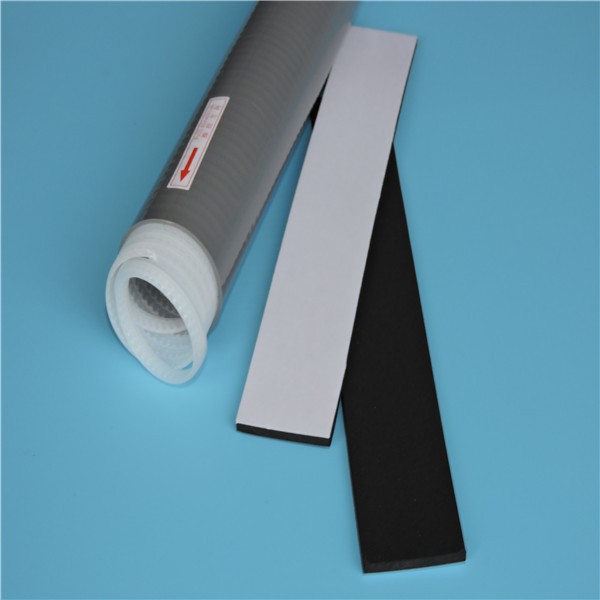

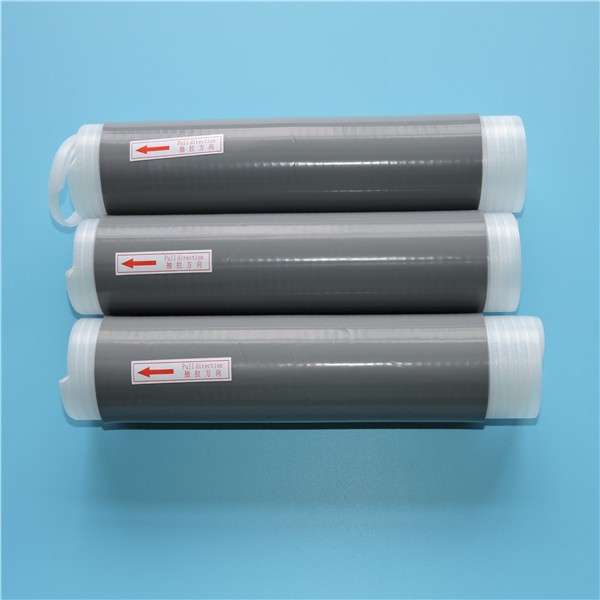

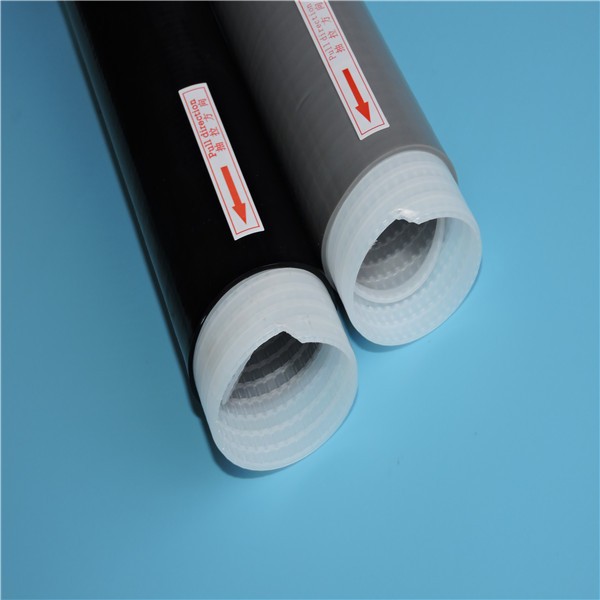

200Degree Silicone Rubber Cold Shrink tube
Description
RUBLS-SILIC 200Degree Silicone Rubber Cold Shrink tube is made of special purpose silicone rubber with a high shrink ratio and excellent physical and mechanical properties like slab and prick resistance. It reliably seals electrical connections of electric communications and cable televisions against water and moisture and effectively insulates wire and cable connections or joints and other electrical connections etc.
Features
Continuous operating temperature：-60°C～200°C. Suits for an extensive range of cable sizes because of the shrinkage Retains its resiliency and pressure even after prolonged years of ageing and exposure, seals tight against moisture and water Good weather resistance, ozone ageing, ultraviolet and salt mist corrosion resistance, performs stably under long-period exposure to the sun . Excellent tear resistance. Simple installation, requires no special heating tools , and adhesive to seal the connections. Standard color: black.
Technical Data
Properties
Typical Data
Test Method
HS
45A
ASTM D 2240
Tensile Strength
9.8MPa
GB/T 528
Elongation at break
840%
GB/T 528
Tear Strength
39kN/m
ASTM D 624
Dielectric Strength
23kV/mm
ASTM D 149
Volume Resistivity
9×1015Ω.cm
ASTM D 257
Dimensions
Size
(mm)
Inner Diameter D(mm)
Min Cable Outer Diameter (mm)
Max Cable Outer Diameter (mm)
Recovered Length L(mm)
VS28-1.4
Ф28
6.0
25.0
36
VS28-1.7
Ф28
6.0
25.0
43
VS28-5
Ф28
6.0
25.0
130
VS28-6
Ф28
6.0
25.0
150
VS32-2.2
Ф32
10.5
27.0
57
VS32-5
Ф32
10.5
27.0
130
VS32-7
Ф32
10.5
27.0
178
VS32-8
Ф32
10.5
27.0
203
VS32-9
Ф32
10.5
27.0
229
VS32-11
Ф32
10.5
27.0
279
VS32-12
Ф32
10.5
27.0
305
VS35-5
Ф35
10.5
30.0
130
VS35-7
Ф35
10.5
30.0
178
VS35-8
Ф35
10.5
30.0
203
VS35-9
Ф35
10.5
30.0
229
VS35-11
Ф35
10.5
30.0
279
VS35-12
Ф35
10.5
30.0
305
VS42-6
Ф42
12.0
36.0
150
VS42-7
Ф42
12.0
36.0
178
VS42-8
Ф42
12.0
36.0
203
VS42-9
Ф42
12.0
36.0
229
VS42-11
Ф42
12.0
36.0
279
VS42-12
Ф42
12.0
36.0
300
VS45-6
Ф45
13.5
39.0
150
VS45-7
Ф45
13.5
39.0
178
VS45-8
Ф45
13.5
39.0
203
VS45-9
Ф45
13.5
39.0
229
VS45-11
Ф45
13.5
39.0
279
VS45-12
Ф45
13.5
39.0
300
VS50-6
Ф50
18.0
45.0
150
VS50-7
Ф50
18.0
45.0
178
VS50-8
Ф50
18.0
45.0
203
VS50-9
Ф50
18.0
45.0
229
VS50-11
Ф50
18.0
45.0
279
VS50-12
Ф50
18.0
45.0
300
VS58-6
Ф58
18.0
51.0
150
VS58-7
Ф58
18.0
51.0
178
VS58-8
Ф58
18.0
51.0
203
VS58-9
Ф58
18.0
51.0
229
VS58-11
Ф58
18.0
51.0
279
VS58-12
Ф58
18.0
51.0
300
VS68-6
Ф68
22.0
63.0
150
VS68-7
Ф68
22.0
63.0
178
VS68-8
Ф68
22.0
63.0
203
VS68-9
Ф68
22.0
63.0
229
VS68-11
Ф68
22.0
63.0
279
VS68-14
Ф68
22.0
63.0
350
