EPDM Rubber Cable Cold Shrink Splice Kit

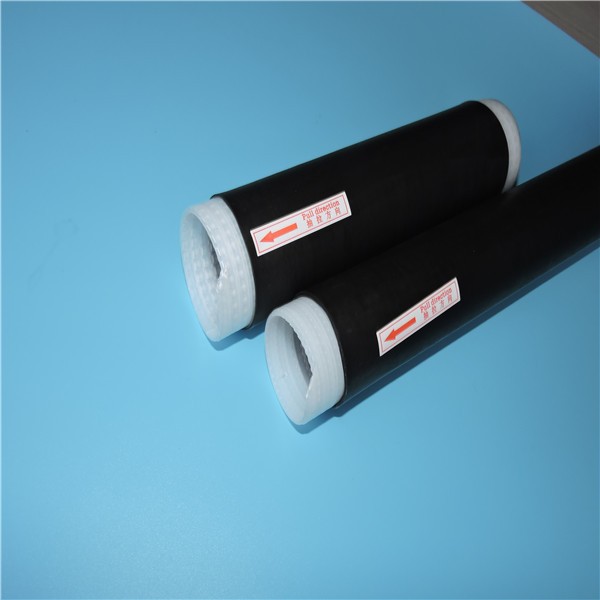

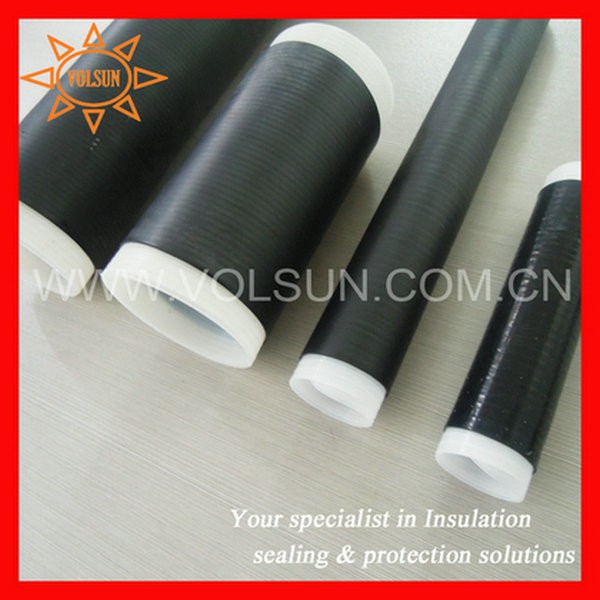

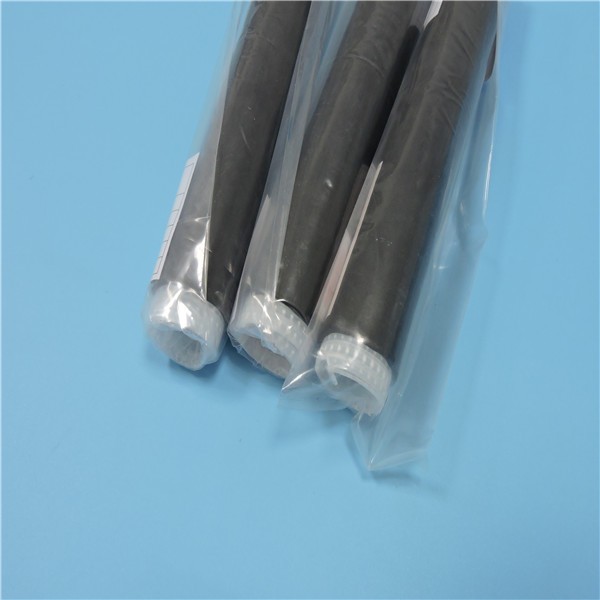

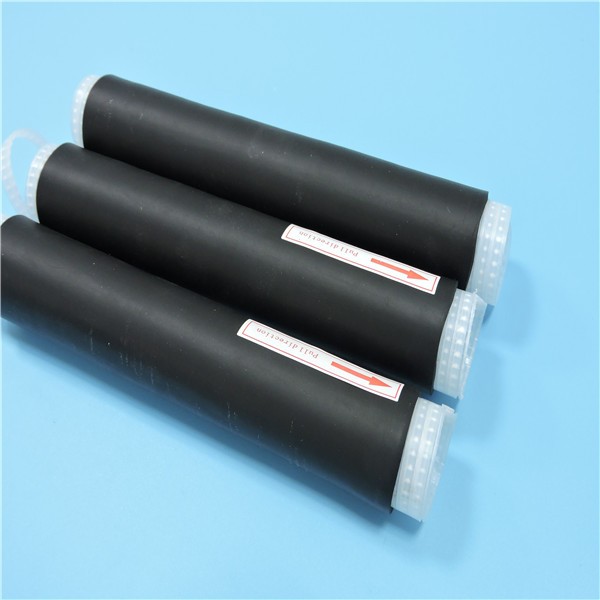

RUBLS-EPDM Cold Shrink Splice Kit a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre-stretched condition. The core is removed after the tube has been positioned for installation over an in line connection, terminal lug, etc., allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber, which contains no chlorides or sulphurs. Various diameter sizes will cover a range of 1000 volt cables, copper and aluminum conductors.
Unique Advantages
Applications
Technical Data
Properties
Typical Data
Test method
HS
49 A
ASTM D 2240-75
Tensile Strength
9.8 MPa
ASTM D412-75
Elongation at break
720%
ASTM D412-75
Tear Strength
27 N/ mm
ASTM D624C-73
Dielectric Strength
14.3kV/mm
ASTM 149-75
Dielectric Constants
5.0(Initial data)/5.6(90degree in the water
for 7 days))
/
Anti-enzyme (bacteria)
The 28 day exposure without growth
ASTM G-21
UV Resistant
UV irradiation for
2000 hours without aging
ASTM G-53
Dimensions
Size
(mm)
Inner Diameter D(mm)
Min Cable Outer diameter (mm)
Max Cable Outer Diameter (mm)
Recovered Length L(mm)
VE18-3
Ф18
7.8
14.3
80
VE18-6
Ф18
7.8
14.3
152
VE18-7
Ф18
7.8
14.3
178
VE24-8
Ф20
2.54
20.9
203
VE25-7
Ф25
10.1
20.9
178
VE25-8
Ф25
10.1
20.9
203
VE25-11
Ф25
10.1
20.9
279
VE25-12
Ф25
10.1
20.9
305
VE28-5
Ф28
8.0
22.5
125
VE35-6
Ф35
13.9
30.1
152
VE35-8
Ф35
13.9
30.1
203
VE35-9
Ф35
13.9
30.1
229
VE35-11
Ф35
13.9
30.1
279
VE42-6
Ф42
16.8
35.1
152
VE42-8
Ф42
16.8
35.1
203
VE42-10
Ф42
16.8
35.1
254
VE42-12
Ф42
16.8
35.1
305
VE42-16
Ф42
16.8
35.1
406
VE42-18
Ф42
16.8
35.1
457
VE50-8
Ф50
13.5
43.7
203
VE58-6
Ф58
24.0
49.3
152
VE58-7
Ф58
24.0
49.3
178
VE58-8
Ф58
24.0
49.3
203
VE58-10
Ф58
24.0
49.3
254
VE58-12
Ф58
24.0
49.3
305
VE58-18
Ф58
24.0
49.3
457
VE58-24
Ф58
24.0
49.3
610
VE58HP-10
Ф58
20.5
51.0
254
VE65-10
Ф65
23.7
57.5
254
VE77-6
Ф77
32.2
67.8
152
VE77-7
Ф77
32.2
67.8
178
VE77-9
Ф77
32.2
67.8
229
VE77-12
Ф77
32.2
67.8
305
VE77-13
Ф77
32.2
67.8
330
VE77-14
Ф77
32.2
67.8
355
VE77-18
Ф77
32.2
67.8
457
VE77-22
Ф77
32.2
67.8
550
VE77HP-13
Ф77
27.4
70.0
330
VE105-8
Ф105
42.6
93.7
203
VE105-9
Ф105
42.6
93.7
229
VE105-18
Ф105
42.6
93.7
457
VE105-20
Ф105
42.6
93.7
508
VE120-24
Ф120
33.0
114.3
610
VE160-24
Ф160
60.0
154.0
620
Remark :*Product contains range –extending adapters (Without adapters, 8424-8/8425-8 ranges are identical. )
