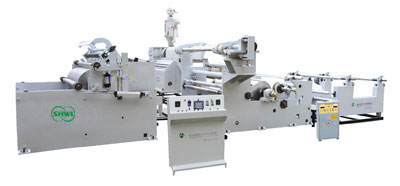

Feature of WLLM90-1500 High-Speed Paper and Plastic Coating Machine
1. With high automation: the whole process from unwinding of raw material to coating and winding is performed by the advanced electric and mechanism devices, PLC Controller, and man-machine interface;
2. Pneumatic auto-rectifying for unwinding, and the tension of the unwinding is controlled by PLC, which ensures smooth unwinding in high speed;
3. High winding and changing coil speed;
4.The speed of extrusion and forming are both controlled by PLC; and the clutch of forming rollers is pneumatic controlled;
5. With water circulation cooling structure in the molding roller, silicone roller and assistant cooling roller to ensure the good coating effect;
6. Automatic coil changing without speed reducing.
Technical Specification of WLLM90-1500 High-Speed Paper and Plastic Coating Machine
| Model | WLLM90-1500 |
| Material Feeding canister and pole | φ90mm |
| L/D | 32:1 |
| Coating material | PE、PP |
| Coating width (mm) | 1100～1500 |
| Thickness of coating | 0.012～0.035mm(single layer) |
| Symmetrical degree of coating | ±6%； |
| Peel off strength | 3～5N/30mm (according to the extruding material) |
| Max extruding capacity | 180kg/h(single) |
| Mechanism speed (m/min) | 0～150 |
| Unwinding diameter and winding diameter (mm) | 1200 |
| Pneumatic roller for unwinding and winding (mm) | 3"(φ73) |
| Total power (kw) | 130 |
| Size (L×W×H) (mm) | 8500×8500×3000 |
| Total weight (kg) | about 18000 |
