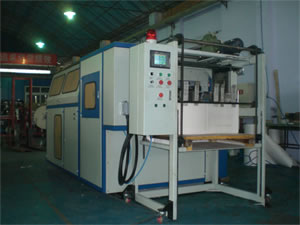

Feature of WLMQ-800 Automatic Die Cutting & Creasing machine
1.The PLC control provides fully automatic feeding, die-cutting, winding, error warning and detecting;
2.Unique cam intermittent construction ensures die-cutting precision and gripper bars processing stability;
3. Inverter controlled main motor, stepless adjustment, stable running;
4.Equipped with the imported premium bearings and chain of transmission device, PLC, transducer and all kinds of electric switches;
5.Many sensors and safe devices are set on the machine to ensure the proper function and human safety.
Technical Specification of WLMQ-800 Automatic Die Cutting & Creasing machine
| Model | WLMQ-800 |
| Movable plate size (mm) | 880×530, 930×530 |
| Rated cutting speed (times/min) | 95times/min Max :110times/min |
| Cutting pressure (T) | 120 |
| Original paper specification (mm) | 150-350g/m² roll paper, Width:355-900 |
| Size (mm) | 4500×2100×1700 |
| Main engine power (kw) | 7.5 |
| Weight (T) | 5 |
