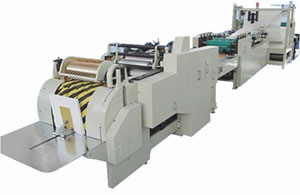

Feature of WLZD-330 Square Bottom Paper Bag Making Machine
1. Equipped with PLC man-machine interface, which greatly saves labor force;
2. With a continuous function of automatic paper suction, gluing, impressing, bottom sticking and bag formation at a stroke.
Technical Specification of WLZD-330 Square Bottom Paper Bag Making Machine
Model | WLZD-330 |
Roll width (mm) | 550-980 |
Paper Weight (g/m2) | 70-140 |
Bag Width (mm) | 150-330 |
Bag Length (mm) | 250-450 |
Bag Bottom Width (mm) | 80-150 |
Power (kw) | 12 |
Machine Size (mm) | 11000*1500*1700 |
Bag-making Speed (bags/min) | 40-60 |
Total Weight (kg) | 8000 |
