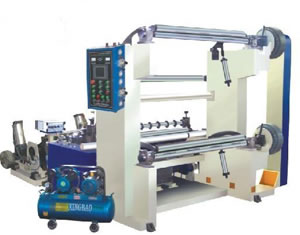

Features of WLFQ-1000 High Speed Paper Cutting Machine
1.Equipped with the dual photo-electricity tracker rectifying system;
2.Automatic stop when the winding length is finished;
3.Frequency control of main traction motor;
4.Unwinding tension is controlled by magnetic power brake;
5.Winding tension is controlled by dual vector motor;
6.With pneumatic device in the unwinding and winding shaft.
Technical Specifications of WLFQ-1000 High Speed Paper Cutting Machine
| Model | WLFQ-1000 |
| Suitable material | 50~700gsm coil paper and plastic film |
| Max diameter of material coil (mm) | 1200 |
| Max width of material (mm) | 1000 |
| Inside diameter of coil | 3" |
| Cutting range (mm) | 100～1000(adjustable in this range) |
| Max winding diameter (mm) | 1200 |
| Speed (m/min) | Machine Speed: 250m/min, Slitting Speed: 220m/min Slitting |
| Cutting type | Two kinds of cutter: Round cutter to slit paper: Min. Cut Width 50mm, blade to slit Plastic film: Min. Cut Width: 10mm |
| Rectifying type | Dual infrared ray photo-electricity eye rectifying |
| Head face tolerance (mm) | <1 |
| Cutting error tolerance (mm) | <1;<0.5 |
| Rectifying error tolerance (mm) | <0.5 |
| Power (Kw) | about 15 |
| Air supply (m3) | 0.11 |
| Net Weight (Kg) | 4500 |
| Overall size(L×W×H)(mm) | 1900×2900×2100mm, 1600×2900×1400mm |
