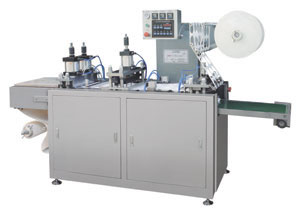

Feature of WLBG-350G Automatic Cup Lid Forming Machine
1. Meet the GMP / QS double standard purification clean production certification;
2. Equipped with PLC man-machine interface, stepless frequency conversion and PC circuit control panel;
3. Can realize unwinding-thermoforming-punching-cutting-rewinding these five-position automatic production synchronously;
4. With the special feeding device and special punching device, which own higher efficiency;
5. Can adjust stroking and the plate size;
Technical Specifications of WLBG-350G Automatic Cup Lid Forming Machine
Model | WLBG-350G |
Punching frequency (cycles/min) | 20-45 |
Stroke adjustment range (mm) | 30-120 |
Max. forming depth (mm) | 28 |
Main motor power (4Kw) | 4 |
Air consumption (m3/min) | > 0.2 |
Air pressure (Mpa) | 0.4-0.7 |
Size (mm) | 2500*900*1700 |
Weight (Kg) | 650 |
