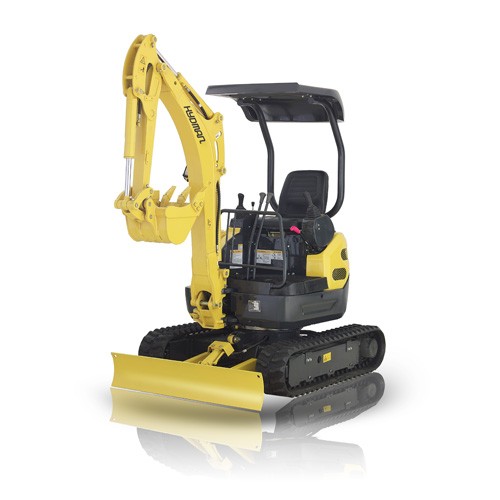

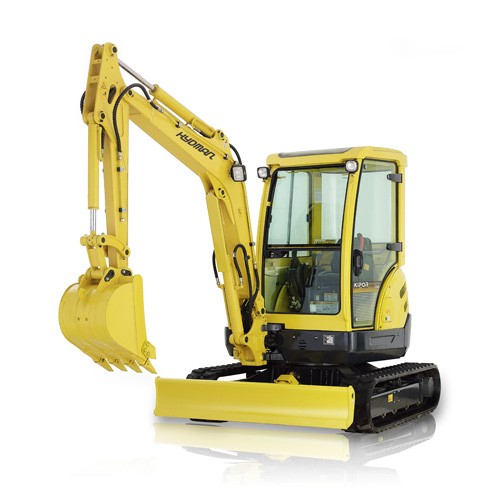

KDG serial hydraulic excavator is a new generation of advanced digger machine. which is a kind of mini excavator and shares the leading level in both the domestic and international market. It is the ideal working machine for agriculture, water conservation and engineering
construction.
Engine System
Equipped with engine which is researched and developed by our company; Enjoys perfect performance,higher power, lower fuel consumption, exhaust and noise.
Compact Structure, No Tail Rotation
The no tail rotation structure is applied; as a result, the tail part is contained within the pedrail range and
the excavator can now work freely even in the long and narrow area. The machine working efficiency is
greatly improved.
Boom Side-shift Device
With the side-shift device on the front, the excavator can work on the cliff or wall directly and easily, so
that the machine application range is widened.
Good Stability
It is designed with excellent stability in every digging direction, in order to ensure comfort and safety for
the driver.
Instrument
The liquid crystal electric monitor is used to check the operation conditions, such as the fuel level, cooling
water temperature, and alarm system.
Operation System
World-class advanced operation system is applied for easy operation of boom, bucket rod, rotation, earth
pushing and swing; the labor intensity is also reduced.
Beautiful and Fashionable Appearance
The whole covering surface is pressed and painted with advanced technology, so the machine
appearance is extremely colorful and attractive.
Convenient Daily Check
Open the rear cover, left cover and front door, and then check the hydraulic system, engine system and the
accessory parts, there is no need for any tools.
Easy Maintenance
It takes only few minutes to disassemble the right cover, front cover, tool tank and check the inner parts.
Maintenance-free Battery
First-class quality and long working time.
Hydraulic System
Application of full power variable control system results in high efficiency and low fuel consumption and
avoids engines'shutting down from over load. It is featured by fine compound action cooperation, large
digging force and traction force, and world famous hydraulic components.
Model
KDG15
Bucket capacity (m3)
0.05
Standard bucket width (with/without sharpener) (mm)
460.7/398
Operation weight (kg)
1720
Overall dimension (LxHxD) (mm)
3570x2260x1350
Engine model
KD373
Engine rated output (kw/r/min)
10.7/2200
Max. digging height (mm)
3365
Max. dumping height (mm)
2305
Max. digging depth (mm)
2105
Max. vertical digging depth (mm)
1830
Max. digging radius (mm)
3875
Side-shift amount for big boom(left/right) °
53/57
Min. front gyration radius (mm)
1505(1035)
Min. rear gyration radius (mm)
640
Max. digging force(bucket) (Kn)
>11
Pedrail
Rubber
Pedrail width (mm)
250
Travelling speed (km/h)
2.4
Grade ability (%)
≥50
Gyration speed (r/min)
8
Shovel mould board (width) (mm)
1350
Shovel mould board (height) (mm)
253
Lifting distance (up/down) (mm)
215/160
Hydraulic pump
Variable plunger pump x 2 + Gear pump x 1
Rotary motor
Cycloidal hydraulic motor
Travelling motor
Plunger hydraulic motor
Fuel tank capacity (L)
20
