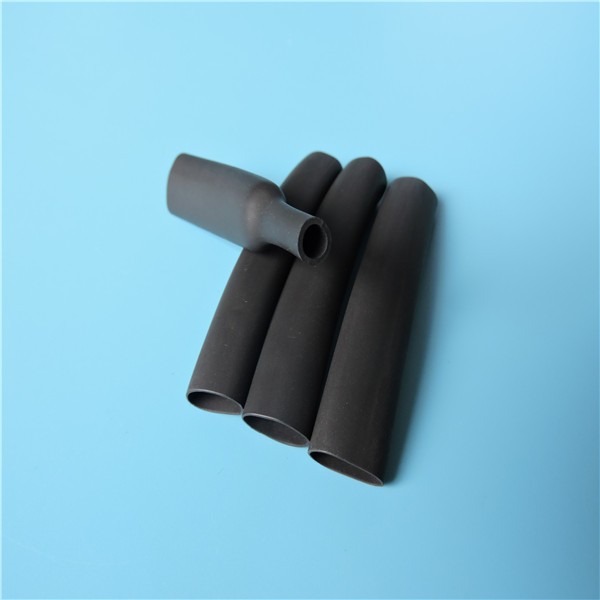

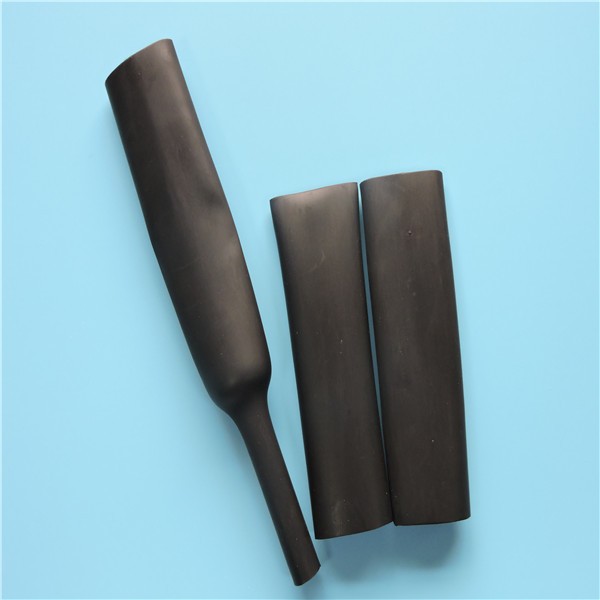

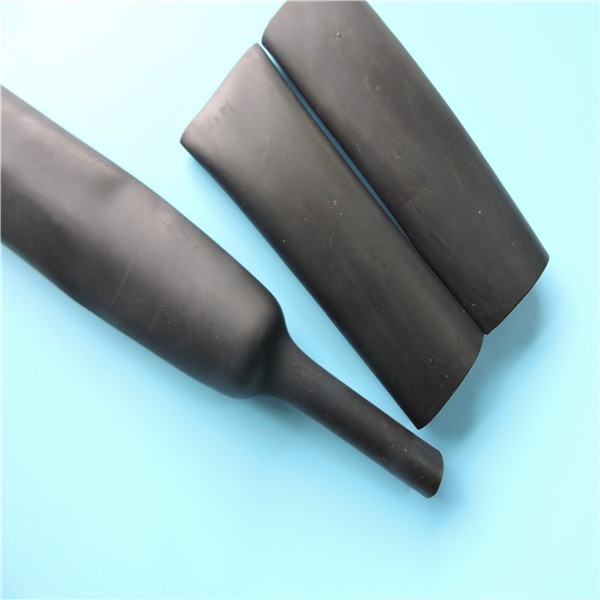

EPDM Rubber Heat Shrink Tubing
Description
TZRS-EPDM150(2X) is a a new type of heat shrink tubing product, which is made through complicated formulation of EPDM rubber and special resins. When TZRS-EPDM150(2X) is heated, its inside diameter quickly recovers to half of the expanded inside diameter as supplied to tightly wrap and cover the electronic components inside. Compared to normal EPDM tubing, TZRS-EPDM150(2X), cross linked through the irradiation of electronic accelerators, has much better physical and mechanical performance, higher dielectric strength, abrasion and wear resistance. It finds wide applications in electronics, automotive, and consumer goods markets for jacketing and protection to cables, pipes, and connectors etc and protecting solder joints, wires, cables, terminals, connectors and various electronic apparatus.
Features
Ultraviolet light and weather aging resistance Minimum shrink temperature:100°C Minimum full recovery temperature :135°C Continuous operating Temperature Range: -55~150°C Shrink Ratio: 2:1 Use in 180-200°C Standard color: Black Outstanding low and high-temperature performance Higher shrink ratio than heat shrinkable silicone tubes Excellent acids and alkalis resistance Chemical solvent resistance
Technical Data
Properties
Typical Data
Test Method
Tensile Strength
≥14 Mpa
GB/T 528
Ultimate Elongation
≥400%
GB/T 528
Tear Strength
≥ 60Kn/M
ASTM D 624
Dielectric Strength
≥12kV/mm
ASTM D149
Density
1.1±0.05
g/cm3
ASTM D 792
Volume Resistivity
≥2×1013
ASTM D 257
Dimension
Size
As Supplied(mm)
D
After Full Recovery(mm)
Scope of Application
(mm)
Standard Package
(m/spool)
I.D.(Max.)d
Wall Thickness w
φ6.0
≥6.0
≤3.0
0.8±0.10
3.5-6
50
φ8.0
≥8.0
≤4.0
0.9±0.10
4.5-8
50
φ10.0
≥10.0
≤5.0
1.2±0.10
5.5-9.5
50
φ12.0
≥12.0
≤6.0
1.2±0.10
6.5-11.5
20
φ16.0
≥16.0
≤8.0
1.5±0.15
8-15
20
φ20.0
≥20.0
≤10.0
1.5±0.15
11-19
20
φ30.0
≥30.0
≤15.0
1.8±0.15
17-29
20
φ40.0
≥40.0
≤20.0
2.0±0.15
22-38
20
φ50.0
≥50.0
≤25.0
2.0±0.20
27-48
10
φ60.0
≥60.0
≤30.0
2.0±0.30
32-58
10
φ70.0
≥70.0
≤35.0
2.0±0.30
38-68
10
Lead time :1-2 Weeks.
