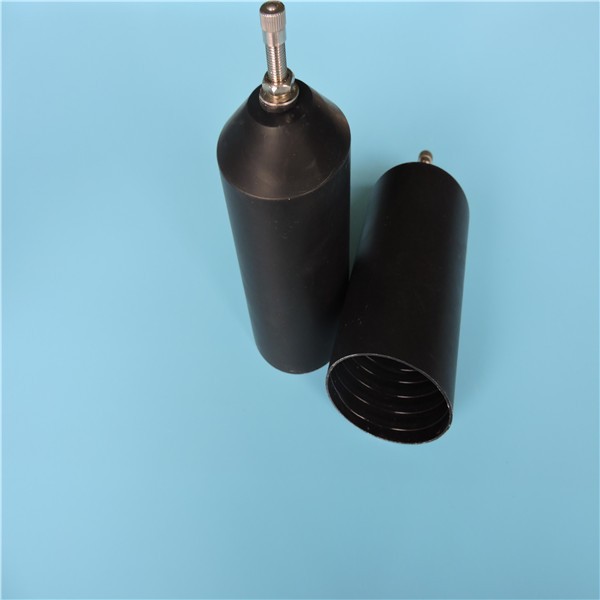

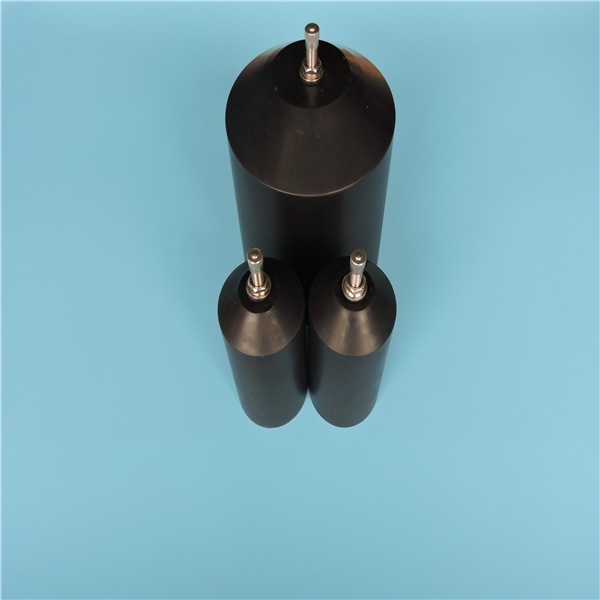

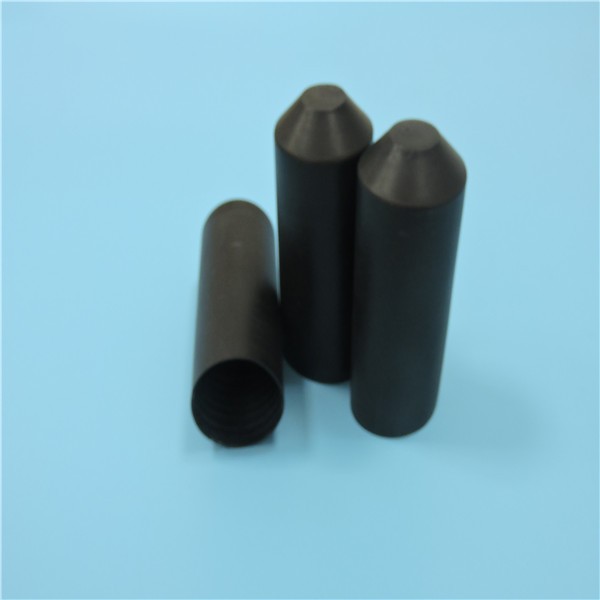

      Good Sealing Adhesive Cable End Cap

      Products Visitors:101



      Good Sealing Adhesive Cable End Cap


      Description

      Good Sealing Adhesive Cable End Cap with flat adhesive coating inside, are typically used to seal cable terminals against moisture etc.


      Features

      Good sealing, waterproof, moisture proof
      Ultraviolet resistant and weather resistance
      RoHS compliant
      Continuous Operating Temperature: -55°C~110°C
      Shrink Temperature: 120°C
      Standard colors: Black


      Technical Data

      Test Properties

      Test Method

      Typical Data

      Tensile Strength

      ≥14MPa

      ASTM D 412

      Elongation at break

      ≥400%

      ASTM D 412

      Density

      1.05g/cm3

      ASTM D 792

      Elongation after heat ageing

      ≥300%

      ASTM D 412

      dielectric strength

      ≥15kV/mm

      IEC 60243

      Volume Resistivity

      ≥1014Ω .cm

      IEC 60093


      Structure


      Lead time :1-2 Weeks.
      Package:Standard Exporting Pakage
      Each items will be checked  twice and packed well before shipment .
      We usually ship our goods by express  courier, airway, or ocean way.
      You can check the package status online with the track number. Generally , we use DHL, EMS, UPS , but depends on our customer's requirement

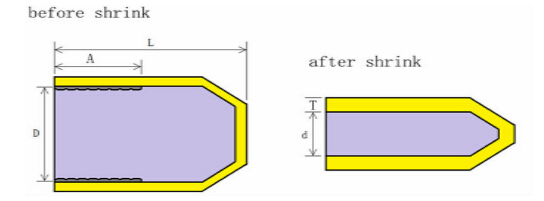

      Dimension



      Size(mm)

      As Supplied ID(mm)

      Length  (±10%)

      Length of Adhesive (±10%)

      Size after shrink (±10%)

      ID(mm)

      Wall thickness W (±10%)

      Standard Type

      Φ12/4

      ≥12.0

      40

      15

      ≤4.0

      2.6

      Φ14/5

      ≥14.0

      45

      18

      ≤5.0

      2.2

      Φ20/6

      ≥20.0

      55

      25

      ≤6.0

      2.8

      Φ25/8.5

      ≥25.0

      68

      30

      ≤8.5

      2.8

      Φ35/16

      ≥35.0

      83

      35

      ≤16.0

      3.3

      Φ40/15

      ≥40.0

      90

      40

      ≤16.0

      3.3

      Φ55/26

      ≥55.0

      103

      50

      ≤26.0

      3.5

      Φ75/36

      ≥75.0

      120

      55

      ≤36.0

      4.0

      Φ100/52

      ≥100

      140

      70

      ≤52.0

      4.0

      Φ120/60

      ≥120

      150

      70

      ≤60.0

      4.0

      Φ145/60

      ≥145

      150

      70

      ≤60.0

      4.0

      Φ160/82

      ≥160

      150

      70

      ≤82.0

      4.2

      Φ200/90

      ≥200

      160

      70

      ≤90.0

      4.2

      Standard Type

      Φ14/5

      ≥14.0

      55

      30

      ≤5.0

      2.2

      Φ42/15

      ≥42.0

      110

      40

      ≤15.0

      3.3

      Φ55/23

      ≥55.0

      140

      70

      ≤23.0

      3.8

      Φ62/23

      ≥62.0

      140

      70

      ≤23.0

      3.8

      Φ75/32

      ≥75.0

      150

      70

      ≤32.0

      4.0

      Φ75/36

      ≥75.0

      170

      70

      ≤36.0

      4.2

      Φ105/45

      ≥105

      150

      65

      ≤45.0

      4.0


      Lead time :1-2 Weeks.
      Package:Standard Exporting Pakage
      Each items will be checked  twice and packed well before shipment .
      We usually ship our goods by express  courier, airway, or ocean way.
      You can check the package status online with the track number. Generally , we use DHL, EMS, UPS , but depends on our customer's requirement
