1KV Heat Shrink Busbar Sleeving
Description
MPRS-LV 1KV Heat Shrink Busbar Sleeving, a kind of continuous tube shape material made of radiation cross-linked polyolefin, carry excellent insulating performance. Typical applications include insulation of electrical bus bar rated up to 1KV or higher voltage ratings, rectangular, square and round bus bars, inline bolted connections of rectangular bus bars, copper or aluminum bus bars, metal-clad switchgear, metal-enclosed bus bar, substation switchgear etc.
Features

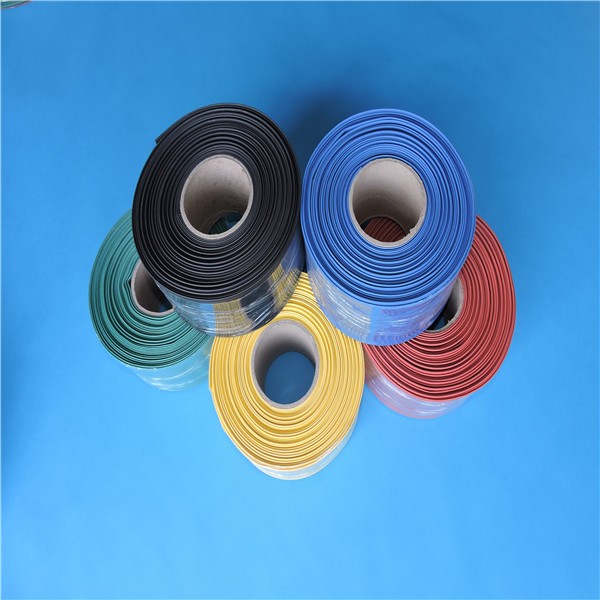

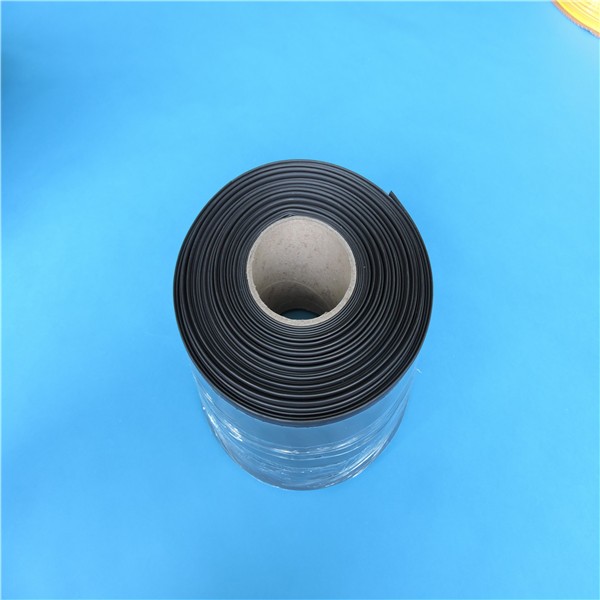

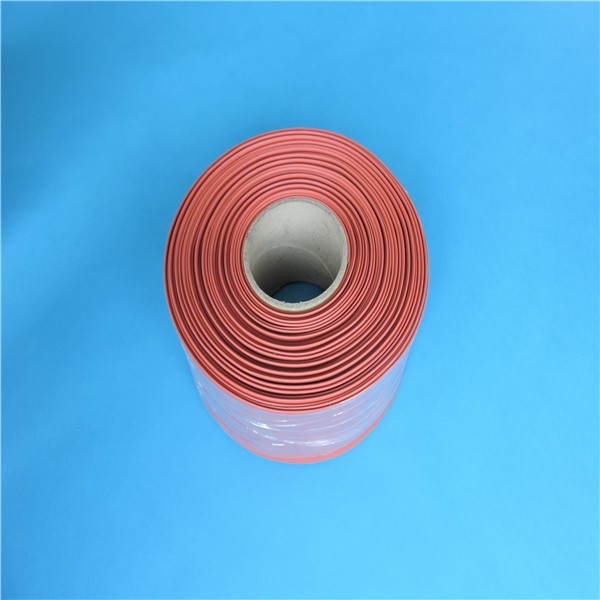

Shrink ratio: 2:1 Tracking resistant, low smoke emitting, high strength, flexible, flame retardant Min. shrink temperature: ≥84 °C Min. full recovery temperature: ≥120 °C Continuous operating temperature: -55～125 °C RoHS compliant Standard Package: Black, White, Red ,Yellow, Green ,Blue. More colors are available upon request.
Technical Performance
Structure
Dimensions (2:1)
Size（mm）
As supplied D(mm)
After full recovered (mm)
Standard Package
(M/Roll)
Diameter d
Wall thickness w
Φ30.0/15.0
31.5±1.0
≤15.0
1.00±0.15
50
Φ35.0/17.5
36.5±1.0
≤17.5
1.00±0.15
50
Φ40.0/20.0
41.5±1.0
≤20.0
1.00±0.15
50
Φ50.0/25.0
≥50
≤25.0
1.10±0.15
25
Φ60.0/30.0
≥60
≤30.0
1.20±0.15
25
Φ70.0/35.0
≥70
≤35.0
1.30±0.15
25
Φ80.0/40.0
≥80
≤40.0
1.30±0.20
25
Φ90.0/45.0
≥90
≤45.0
1.30±0.20
25
Φ100/50.0
≥100
≤50.0
1.30±0.20
25
Φ120/60.0
≥120
≤60.0
1.30±0.20
25
Φ150/75.0
≥150
≤75.0
1.30±0.20
25
Φ180/90.0
≥180
≤90.0
1.30±0.20
25
Φ210/105.0
≥210
≤105.0
1.30±0.30
25
Φ230/115.0
≥230
≤115.0
1.30±0.30
25
Φ250/125.0
≥250
≤125.0
1.30±0.30
25
Φ300/150.0
≥300
≤150.0
1.30±0.30
25
Note: Non-standard dimensions and packages also available on your request
