Feature:
1.Separate circuit boxes for pneumatic control and power control,low noise and more stable and durable.
2.Two sides film pulling belt and servomotor film conveyer stystem,makes the film move stable and smooth bag forming.
3.Two indepent sealing cylinders,makes the excellent sealing and nice sealing strips.
4.Imported PLC system and large touch screen,high automatic,simple operation and mainternance.
5.Postposition for film loading design,convenient to change films.
6.Close down type mechanism,defending dust into inside of machine.
7.Adjustment of bag deviation just need to be controlled by the touch screen,operation is very easy.
Specifications:
Air consumption
3m3/min,6kg/cm2
Film width
320-620 mm
Film roll dia.
max.360mm
Film material
plastic expect PE
Film thickness
0.04-0.08 mm
Bag width
150-300 mm
Bag length
100-400 mm
Packing speed
5-50 bags/min
Packing range
max.3000ml
Power
220V,50/60Hz,3kw
Options:
1.Filling machine:
Auger type filling machine
Measuring cup filling machine
Semi-automatic feeding device
Electronic weighing system

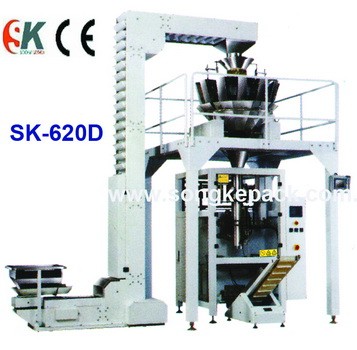

2.material elevator:
Z type bucket chain material elevator
screw conveyer
stainless steel hopper material elevator
3.sealing form
center sealing bag/back sealing bag (standard)
gusset bag/stand bag
linking bags
bags with holes
