Feature:
1.Imported PLC,color touch screen,nice and easy to operation.It can finish from date printing,bag making,filling,sealing,cutting in one operation.
2.Separate circuit box for pneumatic control and power control,low noice and durable.
3.Film-pulling with servomotor,and two sides conveyor film belts,makes nice bag forming:nice and smooth.
4.Postpostion for film,simpler and easier for film installation.
5.Full close down type machanism,defending dust into the inside of machine.
Specification:
Gas consumption:Max.3m3/min,6kg/cm2
Max.film width:520 mm
Film thickness:0.04-0.08 mm
Max film roll dia.:360 mm
Film material:plastic
Bag width:100-250 mm
Bag length:80-350 mm
Packing speed:5-65bags/min
Product size:1430*1200*1700 mm
Product weight:650kgs
Option devices:
1.electronic weighing system
2.semi automatic feeding device

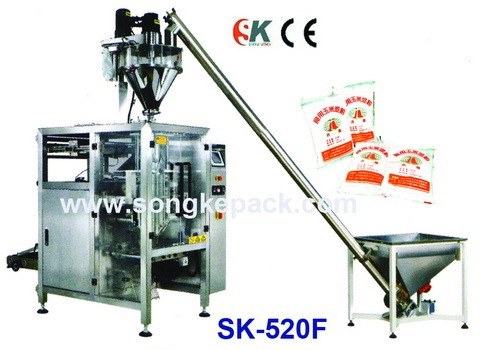

3.auger type filling system
4.cup measuring system
5.material elevator
6.z type bucket chaint material conveyer
7.screw conveyer
8.finished product conveyer
Option sealing form:
1.center sealing bag/pillow shaped bag (standard)
2.gusset bag/stand bag
3.linking bag
4.bag add hole
