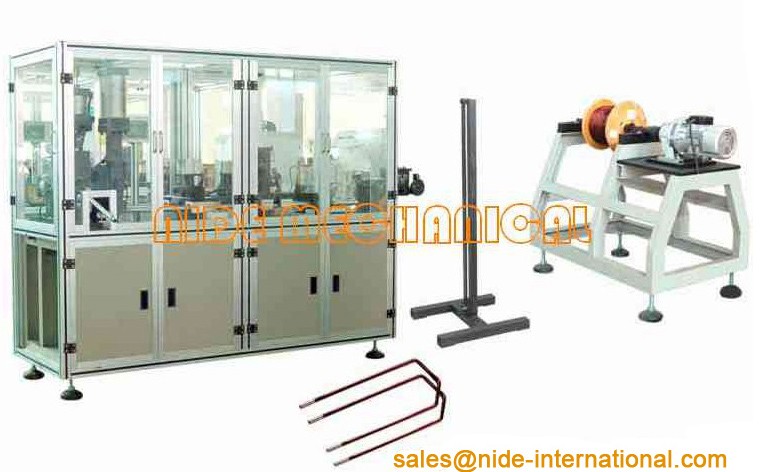

ND-SC-2 Round Wire Automatic Shaping Machine

Special equipment for auto starting motor armature round coil automatic wire loading, automatic wire feeding, automatic alignment, automatic cutting off and automatic shape making;

use imported PLC and Chinese LCD interface, electric fly blade lacquer skin removing, wire feeding by pneumatic pressure, four knifes cutting off and shape making, adjustment convenient.

Power Supply Voltage: 3Φ-380V±10%  50H

Air source Pressure: 0.5~0.7Mpa

Varnish Removing Length: 0~50mm

Wire Feeding Length: 150~400mm

Rated Capacity: 1kva
