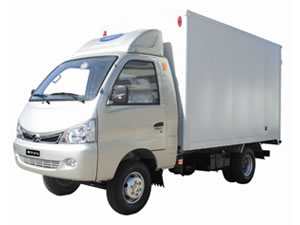

Van Truck HFJ5027XXYAV

Van truck is a kind of cargo truck. It is specially designed with closed truck body and separated driving cab. It is mainly used for sealing transportation of different goods. Some special types of van trucks are designed to transport frozen goods, warming goods, explosive and combustible goods and dangerous chemical articles. Van trucks are very safe and convenient. They are used in factories, supermarkets and individuals.

Our van trucks are powered by diesel engines such as 4 cylinder engines, Euro 2 engine and other common diesel engines. These van trucks feature super load capacity, stable driving property and high working efficiency. They are safe and reliable to use. Van trucks are exported to more than 20 countries and regions such as Vietnam, Burma, Syria and Central America. They gain a great popularity in foreign countries.

Technical parameters of Van Truck HFJ5027XXYAV:
Technology data
Model: HFJ5027XXYAV
Dimensions
Overall length(mm)     4880
Overall width(mm)     1712
Overall height(mm)     2575
Cargo box length (mm)     3060
Cargo box width (mm)     1610
Cargo box height(mm)     1700
Front/rear overhang(mm)     920/1260
Wheel base(mm)     2700
Engine
Model     4L18
Type     4-cyl. In line water cooled
Power(kw)     30/3200
Torque(Nm/rpm)     123/2200
Compression ratio     18:1
Cylinder bore/Piston(mm)     80/90
Displacement(L)     1.809
Standardment     Euro I
Model     QC480ZLQ
Type     4-cyl. In line、supercharged intercooled
Power(kw)     38/3000
Torque(Nm/rpm)     131 / 2000
Compression ratio     18:1
Cylinder bore/Piston(mm)     80/90
Displacement(L)     1.809
Standardment     Euro II
Suspension
Front suspension     Rigid housing axle leaf spring type     3 pieces
Rear suspension     Rigid housing axle leaf spring type     5 pieces
Transmission
Model     5+1 synchromesh transmission
Type     Manual Mechanical
Speed ratio     I:     4.696
II:     2.536
III:     1.576
IV:     1
V:     0.856
R:     4.174
Steering
Type     Roller type
Clutch
Type     Single plate, dry type
Front brake System     Two section hydraulic drum
Rear brake System     Two section hydraulic drum
Tires
Type     6.00-13/6
Safe
Safe belt     Three-point belt
Other specifications
Chassis curb weight(kg)     1690
Load capacity(kg)     1500
Max GW(kg)     3320
Mini turning diameter(m)     12
Mini ground clearance(mm)     180
Max climbing ability (%)     23
Max speed     90
Max Braking distance     22
Seat     2
Mini rate of Fuel consumption(L/100km )     5.5
Optional equipment
Type     Electronic control extinguish equipment
A/C
