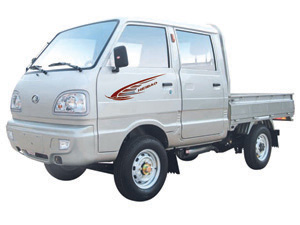

Technical parameters of Mini Truck HFJ1010WV: (380 new model)
Technology data
Model: HFJ1010WV
Dimensions
Overall length(mm)     3980
Overall width(mm)     1415
Overall height(mm)     1880
Cargo box length (mm)     1765
Cargo box width (mm)     1325
Cargo box height(mm)     285
Front/rear overhang(mm)     795/985
Wheel base(mm)     2200
Engine
Model     3L16
Type     3-cyl. In line water cooled
Power     18/3200
Torque(Nm/rpm)     96/2200
Compression ratio     18:1
Cylinder bore/Piston     85/90
Displacement(L)     1.357
Standardment     Euro I
Suspension
Front suspension     Rigid housing axle leaf spring type     5 pieces
Rear suspension     Rigid housing axle leaf spring type     4 pieces
Transmission
Model     5+1 synchromesh transmission
Type     Manual Mechanical
Speed ratio     I:     4.605
II:     2.693
III:     1.645
IV:     1
V:     0.839
R:     3.816
Steering
Type     Roller type
Clutch
Type     Single plate, dry type
Front brake System     Two section hydraulic drum
Rear brake System     Two section hydraulic drum
Tires
Type     5.50-13/4
Safe
Safe belt     Three-point belt
Other specifications
Chassis curb weight(kg)     1100
Load capacity(kg)     1000
Max GW(kg)     2425
Mini turning diameter(m)     10
Mini ground clearance(mm)     180
Max climbing ability (%)     25
Max speed     85
Seat     2+2
Mini rate of Fuel consumption(L/100km )     5
