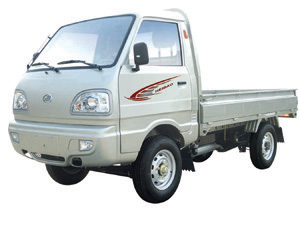

Technical parameters of Mini Truck HFJ1010V: (380 new model)
Technology data
Model : HFJ1010V
Dimensions
Overall length(mm) 3935
Overall width(mm) 1415
Overall height(mm) 1835
Cargo box length (mm) 2480
Cargo box width (mm) 1325
Cargo box height(mm) 285
Front/rear overhang(mm) 795/940
Wheel base(mm) 2200
Engine
Model 3L16
Type 3-cyl. In line water cooled
Power(kw) 18/3200
Torque(Nm/rpm) 96/2200
Compression ratio 18:1
Cylinder bore/Piston(mm) 85/90
Displacement(L) 1.357
Standardment Euro I
Suspension
Front suspension Rigid housing axle leaf spring type 5 pieces
Rear suspension Rigid housing axle leaf spring type 4 pieces
Transmission
Model 5+1 synchromesh transmission
Type Manual Mechanical
Speed ratio I: 4.605
II: 2.693
III: 1.645
IV: 1
V: 0.839
R: 3.816
Steering
Type Roller type
Clutch
Type Single plate, dry type
Front brake System Two section hydraulic drum
Rear brake System Two section hydraulic drum
Tires
Type 5.50-13/4
Safe
Safe belt Three-point belt
Other specifications
Chassis curb weight(kg) 1020
Load capacity(kg) 1000
Max GW(kg) 2150
Mini turning diameter(m) 10
Mini ground clearance(mm) 180
Max climbing ability (%) 25
Max speed 85
Max Braking distance 22
Seat 2
Mini rate of Fuel consumption(L/100km ) 5
