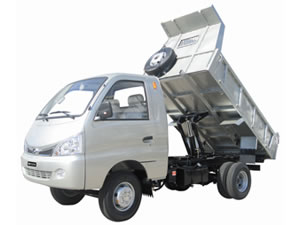

Technical parameters of Dump Truck HFJ3027BV :
Technology data
Model :HFJ3027BV
Dismensions
Overall length(mm)     4530
Overall width(mm)     1750
Overall height(mm)     2050
Cargo box length (mm)     2540
Cargo box width (mm)     1580
Cargo box height(mm)     440
Front/rear overhang(mm)     920/1110
Wheel base(mm)     2500
Engine
Model     4L18
Type     4-cyl. In line water cooled
Power(kw)     30/3200
Torque(Nm/rpm)     123/2200
Compression ratio     18:1
Cylinder bore/Piston(mm)     80/90
Displacement(L)     1.809
Standardment     Euro I
Model     QC480ZLQ
Type     4-cyl. In line、supercharged intercooled
Power(kw)     38/3000
Torque(Nm/rpm)     131 / 2000
Compression ratio     18:1
Cylinder bore/Piston(mm)     80/90
Displacement(L)     1.809
Standardment     Euro II
Suspension
Front suspension     Rigid housing axle leaf spring type     3 pieces
Rear suspension     Rigid housing axle leaf spring type     5 pieces
Transmission
Model     5+1 synchromesh transmission
Type     Manual Mechanical
Speed ratio     I:     4.696
II:     2.536
III:     1.576
IV:     1
V:     0.856
R:     4.174
Steering
Type     Roller type
Clutch
Type     Single plate, dry type
Front brake System     Two section hydraulic drum
Rear brake System     Two section hydraulic drum
Tires
Type     6.00-14 / 6
Safe
Safe belt     Three-point belt
Other specifications
Chassis curb weight(kg)     1560
Load capacity(kg)     1500
Max GW(kg)     3190
Mini turning diameter(m)     11
Mini ground clearance(mm)     180
Max climbing ability (%)     23
Max speed     90
Max Braking distance     22
Seat     2
Mini rate of Fuel consumption(L/100km )     5.5
Optional equipment
Type     Electronic control extinguish equipment
A/C
Dump system
Dump angle(°)     ≥48
Dump time(s)     ≤20
