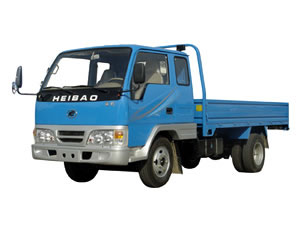

Technical parameters of Light Truck HFJ1034PLV:
Technology data
Model :HFJ1034PLV
Dismensions
Overall length(mm)     5940
Overall width(mm)     1925
Overall height(mm)     2225
Cargo box length (mm)     3725
Cargo box width (mm)     1825
Cargo box height(mm)     390
Front/rear overhang(mm)     1080/1660
Wheel base(mm)     3200
Engine
Model     SD4BW52
Type     4-cyl. In line、supercharged intercooled
Power(kw)     52.5/3200
Torque(Nm/rpm)     175/2200
Compression ratio     17:1
Cylinder bore/Piston(mm)     90×100
Displacement(L)     2.54
Standardment     Euro I
Model     N490ZLQ
Type     4-cyl. In line、supercharged intercooled
Power(kw)     60/3200
Torque(Nm/rpm)     210/2000
Compression ratio     18:1
Cylinder bore/Piston(mm)     90×100
Displacement(L)     2.54
Standardment     Euro I
Suspension
Front suspension     rigid axle suspension、plate spring、double action shock absorber     7 pieces
Rear suspension     rigid axle suspension、plate spring、double action shock absorber     5+6 pieces
Transmission
Model     5+1 synchromesh transmission
Type     Manual Mechanical
Speed ratio     I:     5.568
II:     2.832
III:     1.634
IV:     1
V:     0.794
R:     5.011
Steering
Type     Roller type
Clutch
Type     Single plate, dry type
Front brake System     Two section hydraulic drum
Rear brake System     Two section hydraulic drum
Tires
Type     　
Safe
Safe belt     Three-point belt
Other specifications
Chassis curb weight(kg)     1700
Load capacity(kg)     2000
Max GW(kg)     3830
Mini turning diameter(m)     14
Mini ground clearance(mm)     200
Max climbing ability (%)     30
Max speed     85
Max Braking distance     22
Seat     2
Mini rate of Fuel consumption(L/100km )     7.5
Optional equipment
Type     Electronic control extinguish equipment
A/C
