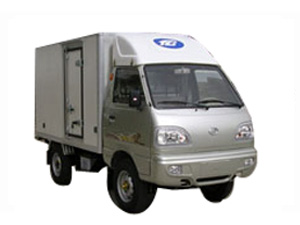

Technical parameters of Van Truck HFJ5020XXYWGV:
Technology data
Model :HFJ5020XXYWGV
Dimensions
Overall length(mm)     4005
Overall width(mm)     1415
Overall height(mm)     2420
Cargo box length (mm)     1670
Cargo box width (mm)     1280
Cargo box height(mm)     1650
Front/rear overhang(mm)     795/1010
Wheel base(mm)     2200
Engine
Model     DA471QLR
Type     4-cyl. In line water cooled gasoline engine
Power(kw)     58/5400
Torque(Nm/rpm)     108/3500-4000
Compression ratio     9.3:1
Cylinder bore/Piston(mm)     71×82.6
Displacement(L)     1.308
Standardment     Euro III
Suspension
Front suspension     Rigid housing axle leaf spring type     5 pieces
Rear suspension     Rigid housing axle leaf spring type     4 pieces
Transmission
Model     5+1 synchromesh transmission 5+1
Type     Manual Mechanical
Speed ratio     I:     3.769
II:     2.045
III:     1.376
IV:     1
V:     0.838
R:     4.128
Steering
Type     Roller type
Clutch
Type     Single plate, dry type
Front brake System     Two section hydraulic drum
Rear brake System     Two section hydraulic drum
Tires
Type     5.50-13/4
Safe
Safe belt     Three-point belt
Other specifications
Chassis curb weight(kg)     1150
Load capacity(kg)     1000
Max GW(kg)     2410
Mini turning diameter(m)     10
Mini ground clearance(mm)     180
Max climbing ability (%)     30
Max speed     99
Max Braking distance     20
Seat     2+2
Mini rate of Fuel consumption(L/100 km )     5
