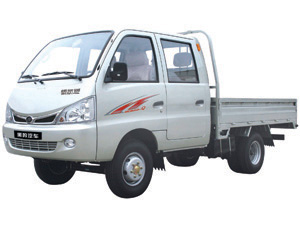

Technical parameters of Small Truck HFJ1027WE1GV:
Technology data
Model :HFJ1027WE1GV
Dimensions
Overall length(mm) 5030
Overall width(mm) 1712
Overall height(mm) 2020
Cargo box length (mm) 2520
Cargo box width (mm) 1590
Cargo box height(mm) 350
Front/rear overhang(mm) 920/1410
Wheel base(mm) 2700
Engine
Model DA471QLR
Type 4-cyl. In line water cooled gasoline engine
Power(kw) 58/5400
Torque(Nm/rpm) 108/3500-4000
Compression ratio 9.3:1
Cylinder bore/Piston(mm) 71×82.6
Displacement(L) 1.308
Standardment Euro III
Suspension
Front suspension Rigid housing axle leaf spring type 3 pieces
Rear suspension Rigid housing axle leaf spring type 5 pieces
Transmission
Model 5+1 synchromesh transmission
Type Manual Mechanical
Speed ratio I: 3.769
II: 2.045
III: 1.376
IV: 1
V: 0.838
R: 4.128
Steering
Type Roller type
Clutch
Type Single plate, dry type
Front brake System Two section hydraulic drum
Rear brake System Two section hydraulic drum
Tires
Type 6.00-13 / 6
Safe
Safe belt Three-point belt
Other specifications
Chassis curb weight(kg) 1310
Load capacity(kg) 1500
Max GW(kg) 3135
Mini turning diameter(m) 12
Mini ground clearance(mm) 180
Max climbing ability (%) 23
Max speed 95
Max Braking distance 22
Seat 2+3
Mini rate of Fuel consumption(L/100km ) 6.1
Optional equipment
Type Electronic control extinguish equipment
A/C
