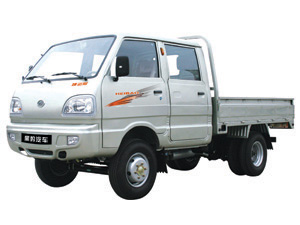

Technical Parameters of Light Truck HFJ1023WLV: (480 new model )
Technology data
Model :HFJ1023WLV
Dimensions
Overall length(mm) 4490
Overall width(mm) 1610
Overall height(mm) 1945
Cargo box length (mm) 2275
Cargo box width (mm) 1495
Cargo box height(mm) 330
Front/rear overhang(mm) 790/1200
Wheel base(mm) 2500
Engine
Model 4L18
Type 4-cyl. In line water cooled
Power(kw) 30/3200
Torque(Nm/rpm) 123/2200
Compression ratio 18:1
Cylinder bore/Piston(mm) 80/90
Displacement(L) 1.809
Standardment Euro I
Model QC480ZLQ
Type 4-cyl. In line、supercharged intercooled
Power(kw) 38/3000
Torque(Nm/rpm) 131 / 2000
Compression ratio 18:1
Cylinder bore/Piston(mm) 80/90
Displacement(L) 1.809
Standardment Euro II
Suspension
Front suspension Rigid housing axle leaf spring type 3 pieces
Rear suspension Rigid housing axle leaf spring type 5 pieces
Transmission
Model 5+1 synchromesh transmission
Type Manual Mechanical
Speed ratio I: 4.605
II: 2.693
III: 1.645
IV: 1
V: 0.839
R: 3.816
Steering
Type Roller type
Clutch
Type Single plate, dry type
Front brake System Two section hydraulic drum
Rear brake System Two section hydraulic drum
Tires
Type 6.00-13/6
Safe
Safe belt Three-point belt
Other specifications
Chassis curb weight(kg) 1355
Load capacity(kg) 1500
Max GW(kg) 3175
Mini turning diameter(m) 10
Mini ground clearance(mm) 180
Max climbing ability (%) 30
Max speed 85
Max Braking distance 22
Seat 2+3
Mini rate of Fuel consumption(L/100km) 5.5
