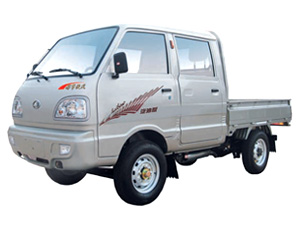

Technical parameters of Mini Truck HFJ1020AWGV:
Technology data
Model :HFJ1020AWGV
Dismensions
Overall length(mm)     3980
Overall width(mm)     1415
Overall height(mm)     1880
Cargo box length (mm)     1765
Cargo box width (mm)     1325
Cargo box height(mm)     285
Front/rear overhang(mm)     795/985
Wheel base(mm)     2200
Engine
Model     DA465Q-1A
Type     4-cyl. In line water cooled gasoline engine
Power(kw/r/min)     38.5/5200
Torque(Nm/rpm)     83/3000-3500
Compression ratio     9:1
Cylinder bore/Piston(mm)     65.5×78
Displacement(L)     1.051
Standardment     Euro III
Suspension
Front suspension     Rigid housing axle leaf spring type     5 pieces
Rear suspension     Rigid housing axle leaf spring type     4 pieces
Transmission
Model     5+1 synchromesh transmission
Type     Manual Mechanical
Speed ratio     I:     3.652
II:     1.948
III:     1.424
IV:     1
V:     0.795
R:     3.466
Steering
Type     Roller type
Clutch
Type     Single plate, dry type
Front brake System     Two section hydraulic drum
Rear brake System     Two section hydraulic drum
Tires
Type     5.50-13/4
Safe
Safe belt     Three-point belt
Other specifications
Chassis curb weight(kg)     990
Load capacity(kg)     1000
Max GW(kg)     2250
Mini turning diameter(m)     10
Mini ground clearance(mm)     180
Max climbing ability (%)     30
Max speed     99
Max Braking distance     20
Seat     2+2
Mini rate of Fuel consumption(L/100km)     6
