Single Wall Polyolefin Heat Shrink Tubing
Products Visitors:439 Product Name:Single Wall Polyolefin Heat Shrink Tubing Size:10mm Model:DBRS-105H(2X)NF Package:100M/Roll

Products description: Single Wall Polyolefin Heat Shrink Tubing

Single Wall Polyolefin Heat Shrink Tubing

Description

DBRS-105(125)H(2X)NF Environment Friendly Heat Shrink Tubing is

made of radiation cross-linked polyolefin, carries excellent physicochemical and electrical properties. Typical applications include insulation of electrical connections or wire splices, rust and corrosion resistance for soldered joints or connections, mechanical and wiring harness protection and insulation. This product is widely used in automotive, agricultural and household machinery with bent tubing where mechanical protection is required, electronics, life consumables, decoration and lighting, communications, ship, aircraft manufacturing and other fields.

Features

Meets UL 224, CAN / CSA C22.2 NO198.1 -99

Heat shrink ratio : 2:1

Flexible, non flame retardant, bright outer layer

Shrink Temperature:

70°C~105°C (DBRS-105H(2X)NF) 84°C~120°C (DBRS-125H(2X)NF)

Continuous operating temperature:

-55°C~105°C (DBRS-105H(2X)NF) -55°C~125°C (DBRS-125H(2X)NF)

Environmental standards:

RoHS , IPC/JEDEC-J-STD-709 Class H material

Standard colors : clear ,black .More colors are available upon request.

Technical Performance

Properties	Typical Data	Test Method
Tensile strength	≥10.4MPa	ASTM D 2671
Elongation at break	≥200%	ASTM D 2671
Longitudinal change	-5%～+5%	ASTM D 2671
Flammability	Non flame retardant	-
Voltage Withstand (Rated voltage, 600V)	2500V，1min without breakdown	UL 224
Breakdown strength	≥15kV/mm	ASTM D 149
Volume resistivity	≥10¹⁴Ω.cm	IEC 60093

Structure

Dimensions (2:1)

Size（mm）	As supplied D(mm)	After full recovered (mm)		Standard Package (M/roll)
Size（mm）	As supplied D(mm)	Inner diameter d	Wall thickness w	Standard Package (M/roll)
φ0.5/0.35	0.7±0.2	≤0.35	0.33±0.10	200
φ0.6/0.40	0.9±0.2	≤0.40	0.33±0.10	200
φ0.8/0.50	1.1±0.2	≤0.50	0.33±0.10	200
φ1.0/0.65	1.5±0.2	≤0.65	0.36±0.10	200
φ1.5/0.85	2.0±0.2	≤0.85	0.36±0.10	200
φ2.0/1.00	2.5±0.2	≤1.00	0.45±0.10	200
φ2.5/1.30	3.0±0.2	≤1.30	0.45±0.10	200
φ3.0/1.50	3.5±0.2	≤1.50	0.45±0.10	200
φ3.5/1.80	4.0±0.2	≤1.80	0.45±0.10	200
φ4.0/2.00	4.5±0.2	≤2.00	0.45±0.10	200
φ4.5/2.30	5.0±0.2	≤2.30	0.45±0.10	100
φ5.0/2.50	5.5±0.2	≤2.50	0.56±0.10	100
φ5.5/2.75	6.0±0.2	≤2.75	0.56±0.10	100
φ6.0/3.00	6.5±0.2	≤3.00	0.56±0.10	100
φ7.0/3.50	7.5±0.3	≤3.50	0.56±0.10	100
φ8.0/4.00	8.5±0.3	≤4.00	0.56±0.10	100
φ9.0/4.50	9.5±0.3	≤4.50	0.56±0.10	100
φ10/5.00	10.5±0.3	≤5.00	0.56±0.10	100
φ11/5.50	11.5±0.3	≤5.50	0.56±0.10	100
φ12/6.00	12.5±0.3	≤6.00	0.56±0.10	100
φ13/6.50	13.5±0.3	≤6.50	0.70±0.10	100
φ14/7.00	14.5±0.3	≤7.00	0.70±0.10	100
φ15/7.50	15.5±0.4	≤7.50	0.70±0.10	100
φ16/8.00	16.5±0.4	≤8.00	0.70±0.10	100
φ17/8.50	17.5±0.4	≤8.50	0.70±0.10	100
φ18/9.00	19.0±0.5	≤9.00	0.70±0.10	100
φ20/10.0	22.0±0.5	≤10.0	0.80±0.15	100
φ22/11.0	24.0±0.5	≤11.0	0.80±0.15	100
φ25/12.5	26.0±0.5	≤12.5	0.90±0.15	50
φ28/14.0	29.0±0.5	≤14.0	0.90±0.15	50
φ30/15.0	31.5±1.0	≤15.0	1.00±0.15	50
φ35/17.5	36.5±1.0	≤17.5	1.00±0.15	50
φ40/20.0	41.5±1.0	≤20.0	1.00±0.15	50
φ50/25.0	≥50.0	≤25.0	1.10±0.15	25
φ60/30.0	≥60.0	≤30.0	1.20±0.15	25
φ70/35.0	≥70.0	≤35.0	1.30±0.20	25
φ80/40.0	≥80.0	≤40.0	1.30±0.20	25
φ90/45.0	≥90.0	≤45.0	1.30±0.20	25
φ100/50.0	≥100.0	≤50.0	1.30±0.20	25
φ120/60.0	≥120.0	≤60.0	1.30±0.20	25
φ150/75.0	≥150.0	≤75.0	1.30±0.20	25
φ180/90.0	≥180.0	≤90.0	1.30±0.20	25
φ210/105.0	≥210.0	≤105.0	1.30±0.30	25
φ230/115.0	≥230.0	≤115.0	1.30±0.30	25
φ250/125.0	≥250.0	≤125.0	1.30±0.30	25
Φ300/150.0	≥300.0	≤150.0	1.30±0.30	25

Note: Non-standard dimensions and packages also available on your request

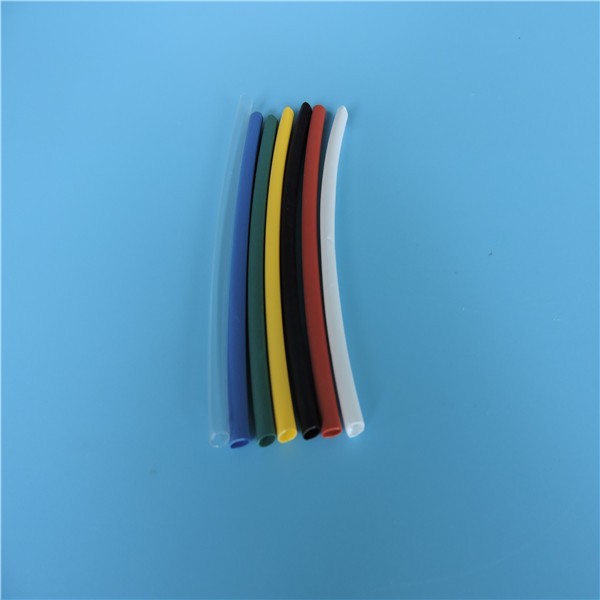

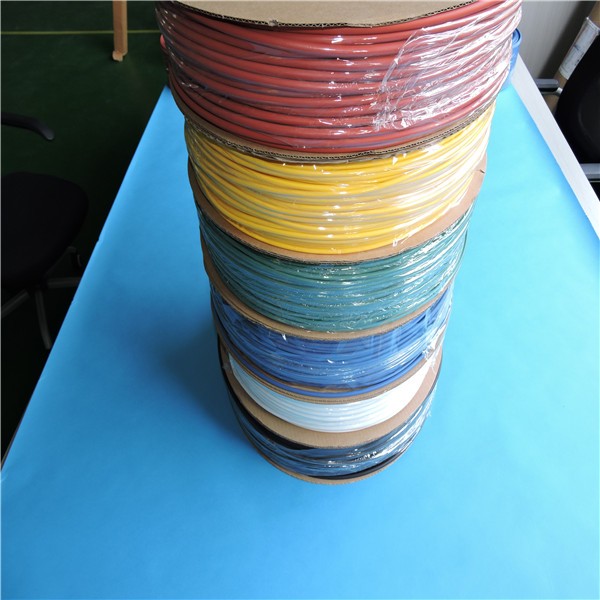

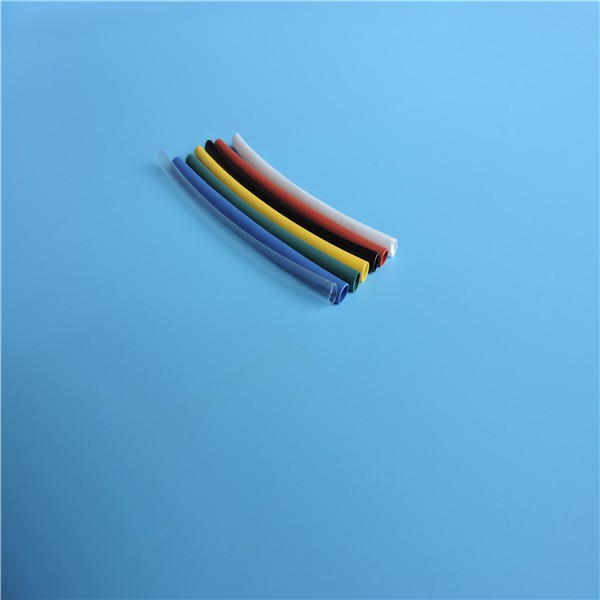

Product Images: Single Wall Polyolefin Heat Shrink Tubing

Single Wall Polyolefin Heat Shrink Tubing
