Medium Wall Large Diameter Heat Shrink Tubing

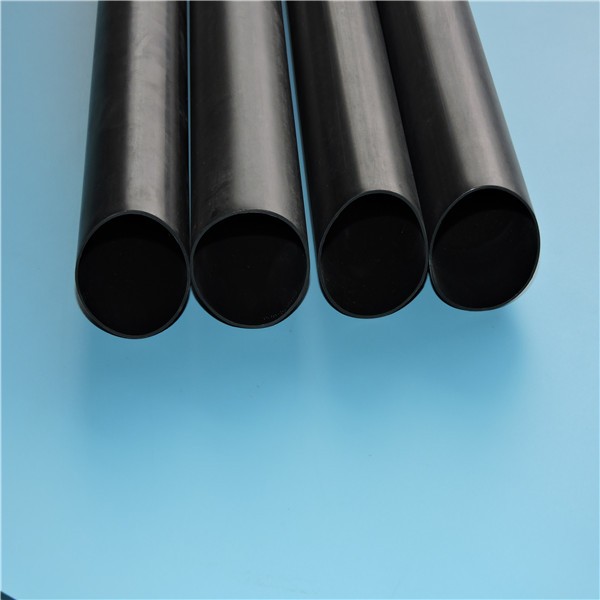

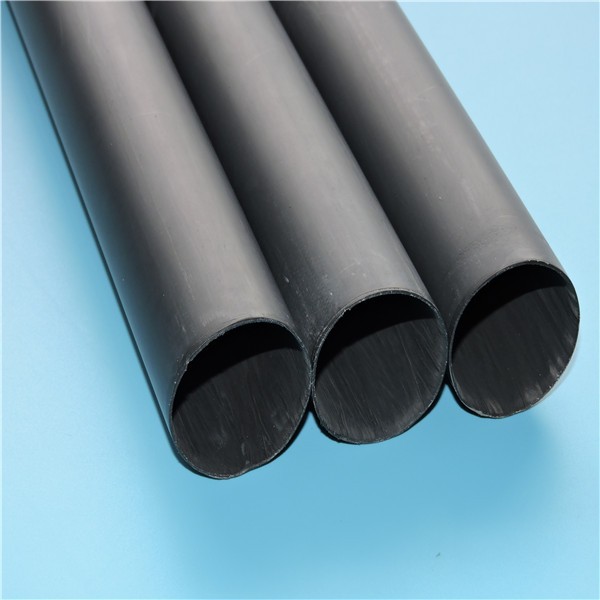

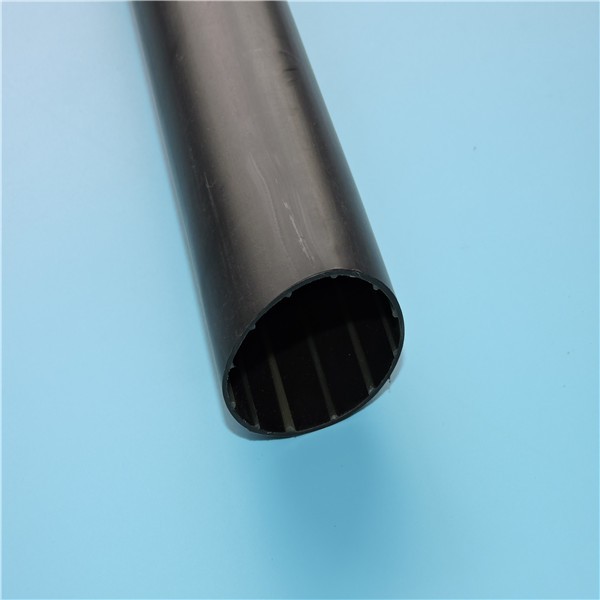

ZBDJ110G(3.5X)NF Medium Wall Large Diameter Heat Shrink Tubingis made of semi rigid polyolefin extruded with a layer of hot melt adhesive inside. This product carries excellent insulation and sealing, corrosion resistance performance, and are found in wide applications like insulation and protection of medium and low voltage cable middle connections and terminations , busbars, as well as different kinds of pipelines because of its excellent corrosion resistance, moisture-proof, and abrasion resistance performances.
Features
Shrink ratio:3.5:1 Semi rigid, non flame retardant, environmentally friendly Shrink temperature:80°C ~120°C Continuous operating temperature:-55°C ~110°C RoHS compliant Standard colors: black
Technical Performance
Hot melt adhesive

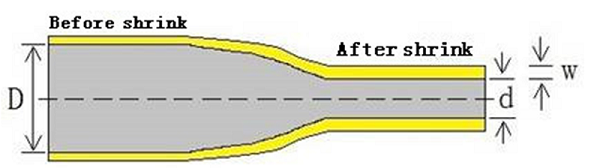

Dimensions(3.5:1)
Size(mm)
As supplied D(mm)
After full recovery(mm)
Standard package
ID d
Wall thickness w
(m/spool, m/pc)
Φ8.0/2.0
≥8.0
≤2.00
≥1.7
1.00～1.50
Φ9.0/3.0
≥9.0
≤3.00
≥1.8
1.00～1.50
Φ12.0/3.0
≥12.0
≤3.00
≥1.8
1.00～1.50
Φ16.0/5.0
≥16.0
≤5.00
≥2.0
1.00～1.50
Φ19.0/5.0
≥19.0
≤5.00
≥2.2
1.00～1.50
Φ22.0/6.0
≥22.0
≤6.00
≥2.2
1.00～1.50
Φ28.0/6.0
≥28.0
≤6.00
≥2.5
1.00～1.50
Φ33.0/8.0
≥33.0
≤8.00
≥2.5
1.00～1.50
Φ40.0/12.0
≥40.0
≤12.0
≥2.5
1.00～1.50
Φ45.0/12.0
≥45.0
≤12.0
≥2.5
1.00～1.50
Φ55.0/16.0
≥55.0
≤16.0
≥2.7
1.00～1.50
Φ65.0/19.0
≥65.0
≤19.0
≥2.8
1.00～1.50
Φ75.0/22.0
≥75.0
≤22.0
≥3.0
1.00～1.50
Φ85.0/25.0
≥85.0
≤25.0
≥3.0
1.00～1.50
Φ95.0/30.0
≥95.0
≤30.0
≥3.0
1.00～1.50
Φ115.0/34.0
≥115.0
≤34.0
≥3.3
1.00～1.50
Φ140.0/42.0
≥140.0
≤42.0
≥3.5
1.00～1.50
Φ160.0/50.0
≥160.0
≤50.0
≥3.5
1.00～1.50
Φ180.0/58.0
≥180.0
≤58.0
≥3.5
1.00～1.50
Φ205.0/65.0
≥205.0
≤65.0
≥3.5
1.00～1.50
Φ235.0/65.0
≥235.0
≤65.0
≥3.7
1.00～1.50
Φ265.0/75.0
≥265.0
≤75.0
≥4.0
1.00～1.50
Φ300.0/85.0
≥300.0
≤85.0
≥4.0
1.00～1.50
Φ350.0/100.0
≥350.0
≤100.0
≥4.3
1.00～1.50
Φ380.0/150.0
≥380.0
≤150.0
≥4.3
1.00～1.50
Φ410.0/150.0
≥410.0
≤150.0
≥4.3
1.00～1.50
Note: Non-standard dimensions and package are available on request
