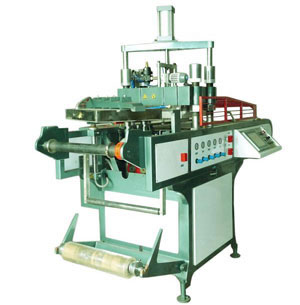

Features of WLQY-580 Full Automatic Thermoforming Machine
1. Equipped with PLC and human machine interface;
2. Offering optional three functions--- fully automatic, semi-automatic and manual;
3. A servo motor is used to feed the plastic sheets and it provides contact heating;
4. The sheet feeding, heating, forming, cutting and cooling can be continuously finished at one section in one processing.

Technical Specifications of WLQY-580 Full Automatic Thermoforming Machine

Model	WLQY-580
Forming area (mm2)	510*570
Forming depth (mm)	100
Max working speed (times/min)	15
Rating power	23kw AC 380V 50HZ
Actual power	10kw AC 380V 50HZ
Air consumption	1m3/min 0.6-0.8mpa
Water consumption (m3/h)	0.41
Overall dimension (mm)	L4500*W1350*H2300
Weight (T)	about 2.3

Application of WLQY-580 Full Automatic Thermoforming Machine
With the technology of integrating electromechanical and electric systems, this fast and efficient WLQY-580 Full Automatic Thermoforming Machine is widely used for plastic packaging containers which are mainly made of BOPS plastic sheets in food industry and pharmaceutical industry, like pastry containers, fast food containers, cold drink glasses, packages for fruits and vegetables, freshness keepers for deep freeze products, medicine packages, inner package for health care products and for medical instruments, etc.
