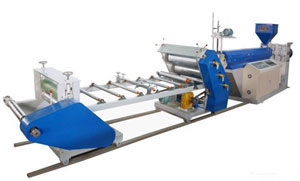

Features of WLPJ Series Plastic Sheet Extruder
1. Equipped with the large L/D ration of screw rod and cast aluminum heater;
2. Automatic extrusion pressure control system to guarantee a uniform resistance on the runner and no detention for uniform sheets;
3. Extrusion die head: after nitrogen treatment, the die head is of high rigidity and machining precision;
4. With a fully automatic continuing belt filter changing device, the die head can easily realize the filter change without stopping the machine, which is high efficiency and cost saving;
5. The triple roller calendaring:
--Its roller is made of high quality steel:
--Its internal bladder is with the water circulation system for double runners to promote the quality of processed sheets.
6. Adopt the high quality electronic components such as converter, pressure meter, etc.
Technical Specifications of WLPJ Series Plastic Sheet Extruder
Model | WLPJ-700 | WLPJ-700D | WLPJ-700T |
Sheet thickness (mm) | 0.15~2.5 | 0.25-2.0 | 0.25-2.0 |
Sheet width (mm) | 700/1000/1400 | 700/1000/1400 | 700/1000/1400 |
Diameter of screw rod (mm) | 90 | 40/90 | 40/90/80 |
Screw L/D ratio | 33:1 | 30:1/33:1 | 30:1/33:1/32:1 |
Main engine power (kw) | 55 | 7.5/55 | 11/55/37 |
Max extruding volume (kg/h) | 200 | 230 | 335 |
Complete machine power (kw) | 110 | 135 | 180 |
Overall dimension (m) | 14*2.5*2.5 | 15*3*2.5m | 15*4.5*2.5 |
Weight (T) | 8 | 10 | 12 |
