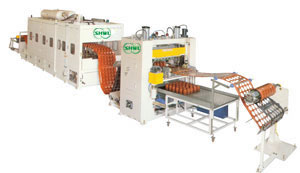

Features of WLPM-650 Plastic Cup Thermoforming Machine
1. A combination of mechanical, electrical and pneumatic components;
2. Equipped with PLC and human machine interface;
3. The feeding, heating, drawing, forming and cutting can be continuously finished at one section in one processing.

Technical Specifications of WLPM-650 Plastic Cup Thermoforming Machine

Model	WLPM-650
Max. forming area (mm2)	350*620
Max. forming depth (mm)	125
Max. width range of sheet (mm)	450-650
Thickness range of sheet (mm)	0.25-2.5
Max. sheet roll diameter (mm)	710
Air pressure (Mpa)	0.7
Water consumption (L/min) (15-20°C)	50
Air consumption (Liters/min)	2000
Manufacturing speed (cycles/min)	10-35
Power(three-phase four-wire)	3*380V+NP+PE, 50HZ
Heating motor power (kw)	70
Main motor power (kw)	5.5
Feeding motor power (kw)	2.2
Rewinding motor power (kw)	0.37
Weight (kg)	4500
Main machine (L*W*H) ((mm))	3300*1650*2250
Winding device(L*W*H) ((mm))	1250*800*1900

Application of WLPM-650 Plastic Cup Thermoforming Machine
Based on these afore-mentioned advantages, this WLPM-650 Plastic Cup Thermoforming Machine is popular applicable to produce kinds of plastic containers in food industry.

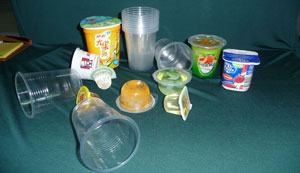

It is suitable for the forming PP, PS, HIPS, PVC and PET plastic sheets, which can be widely used to produce all kinds of plastic boxes, containers and other plastic wares, such as milk cups, jelly cups, disposable drink cups and fast-food boxes etc.
