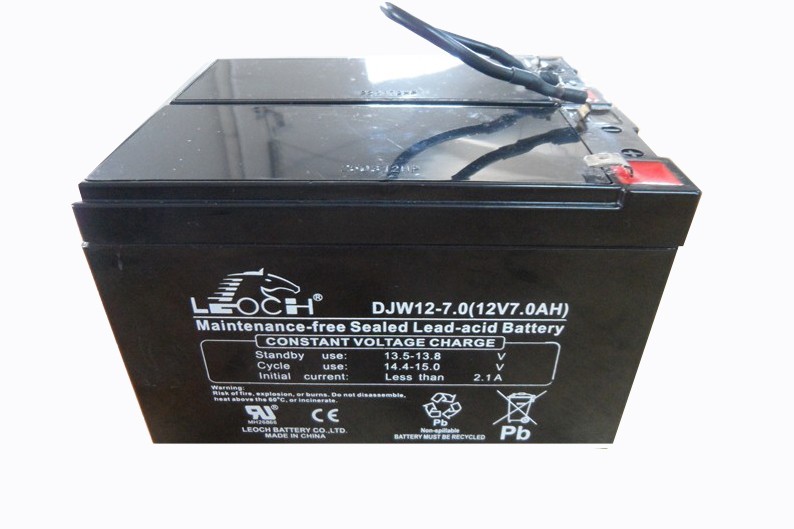

12V Lead acid battery
Voltage:12V
Battery Capacity:7AH
Dimension:(L*W*H)151*65*94.5mm
Certificates:ISO9001,UL,VDS,CE,FCC,IEC
Rated Capacity:
7.00 AH/0.350A (20hr ,1.80V/cell,250C/770F)
6.53 AH/0.653A (10hr,1.80V/cell,250C/770F)
6.00 AH/1.20A (5hr,1.75V/cell,250C/770F)
5.37 AH/1.79A (3hr,1.75V/cell,250C/770F)
4.55 AH/4.55A (1hr,1.60V/cell,250C/770F)
Max. Discharge Current: 105A (5s)
Internal Resistance: Approx 23mΩ
Operating Temp.Range:
Discharge : -15~500C (5 ~1220F)
Charge : 0~400C (32 ~1040F )
Storage : -15~400C (5~1040F)
Nominal Operating Temp. Range: 25±30C (77±50F )
Cycle Use: Initial Charging Current less than 2.1A.Voltage 14.4V~15Vat 250 C(770 F)Temp. Coefficient -30mV/0C
Standby Use: No limit on Initial Charging Current Voltage 13.8V~13.8V at 250 C(770 F) Temp. Coefficient -20mV/0C
Capacity affected by temperature:
40 0C (104 0 F) 103%
25 0C ( 77 0F ) 100%
0 0C ( 32 0F ) 86%
Typical Applications:
1. Uninterruptable power supply(UPS)
2. Electric power system(EPS)
3. Emergency backup power supply
4. Emergency light
5. Railway signal
6. Aircraft signal
7. Alarm and security system
8. Electronic apparatus and equiment
9. Communication power supply
10. DC power supply
11. Auto control system
Battery general features
1.Using oxygen recombination technology: maintenance-free
2.PbCaSn alloy for plate grids: less gassing, less self-discharging
3.High quality AGM separator: extend cycle life and prevent micro short circuit
4.ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)
5.High purity raw material: ensure low self discharge rate
6.Silver-coated copper terminals (T1, T2 terminal), brass insert terminals and lead terminals improve theelectric conductivity
Place of Origin
Guangdong, China (Mainland)
Brand Name
LEOCH
Model Number
LP12-7.0
Usage
UPS
Voltage
12v
Sealed Type
Sealed
Maintenance Type
Free
Size
(L*W*H)151*65*94.5mm
Weight
2.2kg
Nominal Capacity
7.0AH20HR
maintenance type
free
Rated Capacity 2
6.51AH10HR
Rated Capacity 3
5.95AH5HR
Rated Capacity 4
4.40AH1HR
Container Material
ABS
Max. Discharge Current
105A (5s)
Cycle Use
14.4V~15.0V at 25℃
Standby Use
13.5V~13.8V at 25℃
Self Discharge
Leoch LP series batteries may be stored for up to 6 months at 25℃
certificates
CE,ISO9001:2000,UL,VDS,FC
