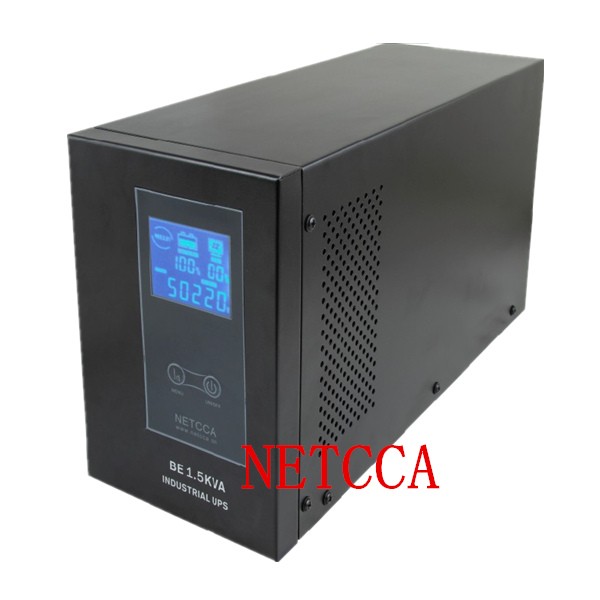

Smart LCD 1.5KVA 1050W Line-Interactive UPS
1.BE1500VA/1.5kVA tower 220V line interactive UPS with LCD display
2.Maintains pure sine wave AC output during power failures
3.Corrects brownouts and overvoltages with AVR from 145-275V
4.Wide-screen LCD panel offers detailed UPS status and site power information

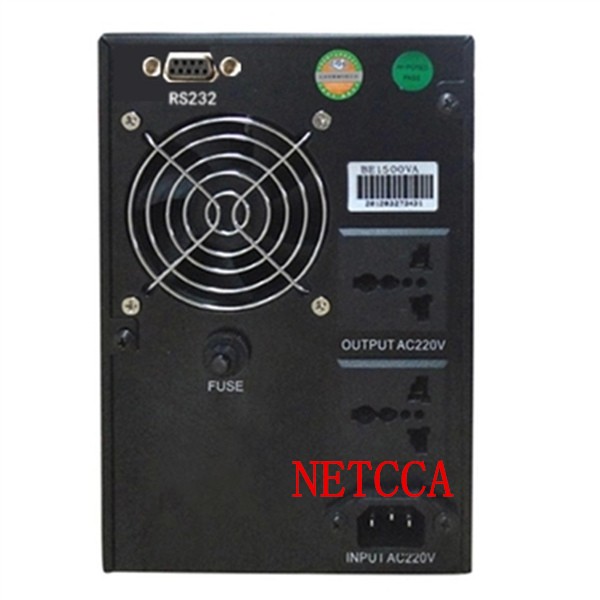

5.Battery inside12V7AH*3PCS, RS232/USB line surge suppression
6.Power: 1050W; Size:385*140*215(MM); G.W: 13KG
7.Backup time 5min when 1000W full load, 45min with one standard desktop computer
8.Package includes: One BE1.5KVA UPS Power Supply,User Manual,CD,Maintenance Card,USB Cable,and Power Cable
10.Available for inductive load, applied to Light pipe, fan, motor, televisions, printers,etc
Long backup time model BE1.5KVAS is available, pls give me your inquiry for more information.
Email: anna@netcca.com.cn
Skype:annayang0501
NETCCA BE1.5-10KVA Smart Online UPS Suppliers Technical Parameters:
AC Mode | BE1.5KVA | BE2KVA | BE3KVA | BE5KVA | BE6KVA | BE10KVA |
Rated capacity | 1050W | 1400W | 2100W | 3000W | 4200W | 7000W |
Input Voltage (Vac) |
85-135/145-275 | |||||
Input Frequency (Hz) |
50±5% | |||||
Output Voltage (Vac) |
110/220±10% | |||||
Output Frequency (Hz) |
50±0.2% | |||||
Output waveform | True sine wave | |||||
Transfer Time (ms) |
4 | |||||
Reserve Time (full load) |
5-15MIN | |||||
Leveling opening times | 10-20TIMES | |||||
General Protection | Output Short;Over Voltage;Low-Voltage;Power Utility Short;Low Battery Voltage | |||||
Overload Protection | Auto Shut Down When Load>120% | |||||
Load Peak Ratio | 3:1(max) | |||||
Distortion Rate(full load)Linear Load | <3% | |||||
Distortion Rate(full load)Un-linear Load | <6% | |||||
Battery Type | Valve Control Maintenance-Free Sealed Lead-Acid Battery | |||||
Communication software | NETCCA POWER | |||||
Work temperature | 0℃-40℃ | |||||
Dimension(L*W*H)mm | 380*140*215 | 430*195*360 | 540*265*590 | |||
Weight(KG) | 18 | 20 | 22 | 35 | 38 | 90 |
