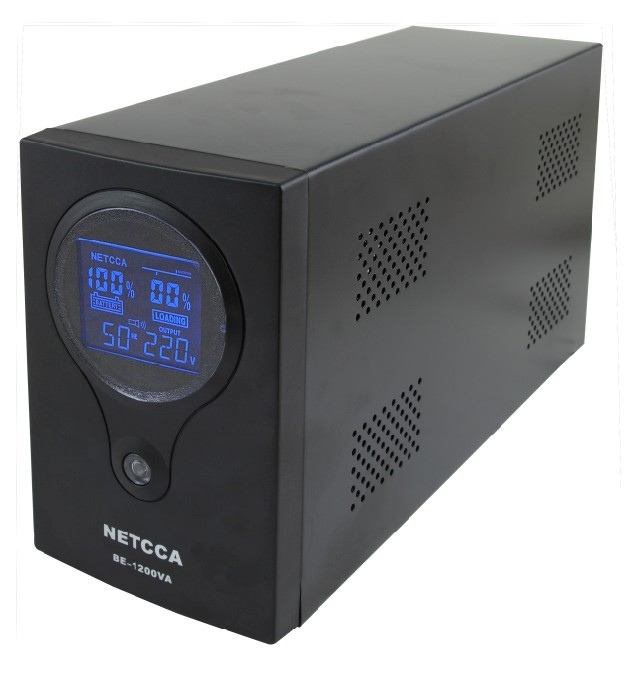

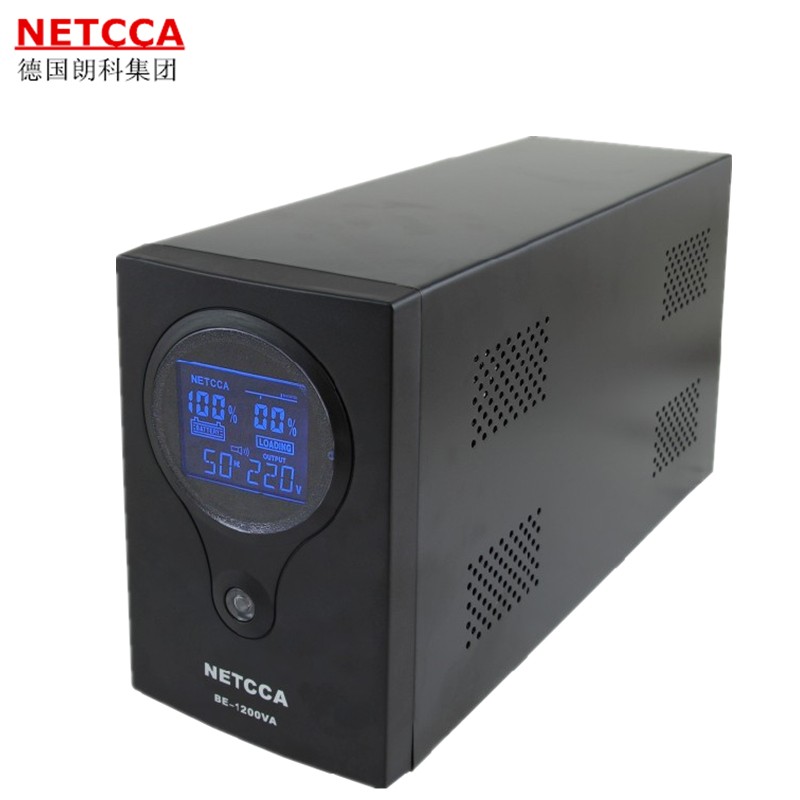

Model: BE1.2KVA
900W24V
LCD Panel
Pure Sine Wave UPS Inverter
Uninterruptible Power Supply Protection System With AVR
UPS Supply Key Features:
1.Pure Sine Wave Output,AC output voltage:220V±10%,output frequency:50Hz±0.2%;
2.Wide AVR range(145V-275V);
3.With 10A charging current;
4.RS232,intelligent software management, keep PC data safe;
5.Wide-screen LCD display, check the working status at a glance;
6.DC 12/24/48V design, extra long working time patterns;
7.Smart online design, high performance & configuration;
8.110%~130% after 10 seconds switch off;Beyond 130% maintain 300ms;
9.Applied for any tough environment(refrigerator, fan, drill, pump,etc);
10.They are UPS for computer, printer(laser printer), lamp, duplicator, fax machine, duplicator, cash counter, card punch, electric rolling gate, electric motor, compressor, relay, impact drill, refrigerator, air condition, light, lamp house, Hi-Fi and so on.
BE1.2KVA Technical Parameters:
|
AC Mode |
BE1.2KVA |
BE1.2KVAS |
|
|
Rated capacity |
900W |
700W |
|
|
Input Voltage(Vac) |
85-135/145-275 |
||
|
Input Frequency(Hz) |
50HZ±5% |
||
|
Output Voltage(Vac) |
110/220±10% |
||
|
Output Frequency(Hz) |
50HZ±0.2% |
||
|
Output waveform |
Pure sine wave |
||
|
Transfer Time(ms) |
2-4 |
||
|
Reserve Time(full load) |
5min when full load |
Long time Model with battery outside |
|
|
DC Mode(V) |
12V9AH*2PCS |
24VDC |
|
|
General Protection |
Output Short;Over Voltage;Low-Voltage;Power Utility Short;Low Battery Voltage |
||
|
Overload Protection |
Auto Shut Down When Load>120% |
||
|
Load Peak Ratio |
3:1(max) |
||
|
Distortion Rate(full load)Linear Load |
<3% |
||
|
Distortion Rate(full load)Un-linear Load |
<6% |
||
|
Battery Type |
Valve Control Maintenance-Free Sealed Lead-Acid Battery |
||
|
Charge Current(A) |
7-15 |
||
|
Charge Mode |
Auto Charge When Start |
||
|
Communication software |
NETCCA POWER |
||
|
Work temperature |
-20℃-40℃ |
||
|
Dimension(L*W*H)mm |
365*120*190MM |
||
|
Weight(KG) |
9.8 |
7.8 |
|
BE1.2KVA UPS Server Details:
BE1.2KVA Interactive UPS Packing List:
BE1.2KVA Accessories:
Communication line,CD,User Manual;
BE1.2KVAS Accessories:
Power line,Communication line,CD, User Manual
Others: according to customers’ requirement.
